PubChem API in R#
by Vishank Patel, Adam M. Nguyen, and Michael T. Moen
PubChem provides programmatic access to chemical data and bioactivity information from the National Center for Biotechnology Information (NCBI), enabling efficient retrieval and analysis of chemical structures, identifiers, properties, and associated biological activities.
Please see the following resources for more information on API usage:
Documentation
Terms
Data Reuse
NOTE: Please see access details and rate limit requests for this API in the official documentation.
These recipe examples were tested on March 24, 2026.
Attribution: This tutorial was adapted from supporting information in:
Scalfani, V. F.; Ralph, S. C. Alshaikh, A. A.; Bara, J. E. Programmatic Compilation of Chemical Data and Literature From PubChem Using Matlab. Chemical Engineering Education, 2020, 54, 230. https://doi.org/10.18260/2-1-370.660-115508 and UA-Libraries-Research-Data-Services/MATLAB-cheminformatics
Setup#
The following packages need to be installed into your environment to run the code examples in this tutorial. These packages can be installed with install.packages().
We load the libraries used in this tutorial below:
library(httr)
library(jsonlite)
library(magick)
1. PubChem Similarity#

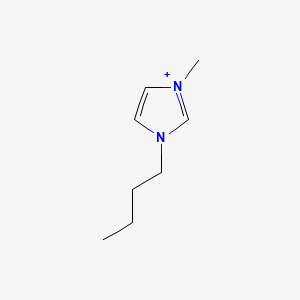

Get Compound Image#
We can search for a compound and display an image. In this example, we look at 1-Butyl-3-methyl-imidazolium, which has a compound ID (CID) of 2734162.
BASE_URL <- "https://pubchem.ncbi.nlm.nih.gov/rest/pug/compound/"
compoundID <- "2734162"
cid_url <- paste0(BASE_URL, "cid/", compoundID, "/PNG")
# Display the image from the CID_URL
image_read(cid_url)
Retrieve InChI and Isomeric SMILES#
An International Chemical Identifier (InChI) is a textual representation of a substance’s molecular structure.
inchi_url <- paste0(BASE_URL, "cid/", compoundID, "/property/inchi/TXT")
# "$content" filters the HTTP response from the output and only returns the required output data
raw_inchi <- rawToChar(GET(inchi_url)$content)
# Clear newline character from output
inchi <- sub("\n", "", raw_inchi)
inchi
## [1] "InChI=1S/C8H15N2/c1-3-4-5-10-7-6-9(2)8-10/h6-8H,3-5H2,1-2H3/q+1"
Isomeric SMILES is a textual representation of molecules that includes stereochemical and isotropic information.
IS_url <- paste0(BASE_URL, "cid/", compoundID, "/property/IsomericSMILES/TXT")
raw_IS <- rawToChar(GET(IS_url)$content)
IS <- sub("\n", "", raw_IS)
IS
## [1] "CCCCN1C=C[N+](=C1)C"
Perform a Similarity Search#
Search for chemical structures by similarity using a 2D Tanimoto threshold of 95% (defined by the Threshold parameter).
threshold <- 95
SS_url <- paste0(BASE_URL, "fastsimilarity_2d/cid/", compoundID,
"/cids/JSON?Threshold=", threshold)
raw_output <- GET(SS_url)$content # Get the Unicode output
raw_result <- rawToChar(raw_output) # Convert the output from Unicode to text
# Print first 500 characters of the JSON response
cat(substr(prettify(raw_result), 1, 500))
## {
## "IdentifierList": {
## "CID": [
## 61347,
## 529334,
## 2734161,
## 118785,
## 12971008,
## 304622,
## 2734162,
## 11171745,
## 11424151,
## 11448496,
## 20148470,
## 87560886,
## 87754289,
## 2734236,
## 11160028,
## 2734168,
## 5245884,
## 53384410,
## 87942618,
## 4183883,
## 10313448,
##
With fromJSON(), we can convert the raw text string above to a list of lists. From this, we can easily extract the CIDs.
# Create a list of lists from the JSON data
CIDs1_ls <- fromJSON(raw_result)
# Extract CIDs from list of lists
CIDs <- CIDs1_ls$IdentifierList$CID
# Display the first few elements of the data
head(CIDs)
## [1] 61347 529334 2734161 118785 12971008 304622
Retrieve Identifier and Property Data#
Get the following data for the retrieved compounds: InChI, ConnectivitySMILES, MolecularWeight, IUPACname, HeavyAtomCount, RotableBondCount, and Charge.
properties <- c("InChI", "ConnectivitySMILES", "MolecularWeight", "IUPACname",
"HeavyAtomCount", "CovalentUnitCount", "Charge")
# Merge properties into a comma-delimited string for the API call
properties_arg <- paste(properties, collapse = ",")
# In this example, we only look at the first 10 CIDs
results <- list()
for (cid in CIDs[1:10]) {
url <- paste0(BASE_URL, "cid/", cid, "/property/", properties_arg, "/JSON")
result <- sub("\n", "", rawToChar(GET(url)$content))
results <- append(results, list(fromJSON(result)$PropertyTable$Properties))
Sys.sleep(0.25)
}
similarity_results_df <- do.call(rbind, results)
head(similarity_results_df)
## CID MolecularWeight ConnectivitySMILES
## 1 61347 124.18 CCCCN1C=CN=C1
## 2 529334 138.21 CCCCCN1C=CN=C1
## 3 2734161 174.67 CCCCN1C=C[N+](=C1)C.[Cl-]
## 4 118785 110.16 CCCN1C=CN=C1
## 5 12971008 252.10 CCCN1C=C[N+](=C1)C.[I-]
## 6 304622 138.21 CCCCN1C=CN=C1C
## InChI
## 1 InChI=1S/C7H12N2/c1-2-3-5-9-6-4-8-7-9/h4,6-7H,2-3,5H2,1H3
## 2 InChI=1S/C8H14N2/c1-2-3-4-6-10-7-5-9-8-10/h5,7-8H,2-4,6H2,1H3
## 3 InChI=1S/C8H15N2.ClH/c1-3-4-5-10-7-6-9(2)8-10;/h6-8H,3-5H2,1-2H3;1H/q+1;/p-1
## 4 InChI=1S/C6H10N2/c1-2-4-8-5-3-7-6-8/h3,5-6H,2,4H2,1H3
## 5 InChI=1S/C7H13N2.HI/c1-3-4-9-6-5-8(2)7-9;/h5-7H,3-4H2,1-2H3;1H/q+1;/p-1
## 6 InChI=1S/C8H14N2/c1-3-4-6-10-7-5-9-8(10)2/h5,7H,3-4,6H2,1-2H3
## IUPACName Charge HeavyAtomCount
## 1 1-butylimidazole 0 9
## 2 1-pentylimidazole 0 10
## 3 1-butyl-3-methylimidazol-3-ium chloride 0 11
## 4 1-propylimidazole 0 8
## 5 1-methyl-3-propylimidazol-1-ium iodide 0 10
## 6 1-butyl-2-methylimidazole 0 10
## CovalentUnitCount
## 1 1
## 2 1
## 3 2
## 4 1
## 5 2
## 6 1

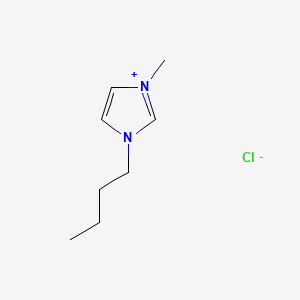

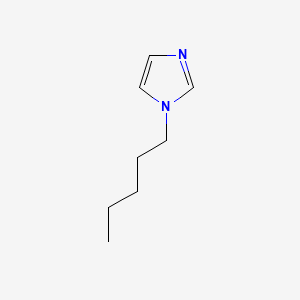

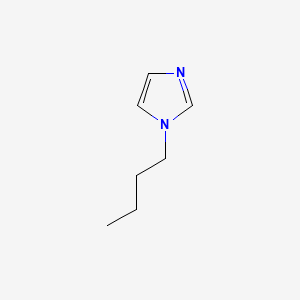

Retrieve Images of CID Compounds from Similarity Search#
Create the results png:
content <- list()
for(cid in CIDs[1:3]) {
url <- paste0(BASE_URL, "cid/", cid, "/PNG")
content[[length(content) + 1]] <- GET(url)$content
Sys.sleep(0.25)
}
image_read(content[[1]])
image_read(content[[2]])
image_read(content[[3]])
2. PubChem SMARTS Search#
We can search for chemical structures from a SMARTS substructure query using the fastsubstructure endpoint. Pattern syntax can be viewed at SMARTSPlus.
In this example, we use vinyl imidazolium substructure searches.
smarts_q <- c(
"[CR0H2][n+]1[cH1][cH1]n([CR0H1]=[CR0H2])[cH1]1",
"[CR0H2][n+]1[cH1][cH1]n([CR0H2][CR0H1]=[CR0H2])[cH1]1",
"[CR0H2][n+]1[cH1][cH1]n([CR0H2][CR0H2][CR0H1]=[CR0H2])[cH1]1"
)
Perform a SMARTS Query Search#
# Generate URLs for SMARTS query searches
sq_urls <- paste0(BASE_URL, "fastsubstructure/smarts/", smarts_q, "/cids/JSON")
# Perform substructure searches for each query link in sq_urls
sq_cids <- c()
for (url in sq_urls) {
hit_CIDs_ls <- fromJSON(rawToChar(GET(url)$content))
sq_cids <- append(sq_cids, hit_CIDs_ls$IdentifierList$CID)
Sys.sleep(0.25)
}
# Print number of results
length(sq_cids)
## [1] 1025
Retrieve Identifier and Property Data#
Create an identifier/property dataset from the SMARTS substructure search results
Retrieve the following data for each CID: InChI, ConnectivitySMILES, MolecularWeight, IUPACname, HeavyAtomCount, CovalentUnitCount, and Charge.
properties <- c("InChI", "CanonicalSMILES", "MolecularWeight", "IUPACname",
"HeavyAtomCount", "CovalentUnitCount", "Charge")
# Merge properties into a comma-separated string for the API call
properties_arg <- paste(properties, collapse = ",")
# In this example, we only look at the first 10 CIDs
results = list()
for (cid in sq_cids[1:10]) {
url <- paste0(BASE_URL, "cid/", cid, "/property/", properties_arg, "/JSON")
result <- sub("\n", "", rawToChar(GET(url)$content))
results <- append(results, list(fromJSON(result)$PropertyTable$Properties))
Sys.sleep(0.25)
}
smarts_results_df <- do.call(rbind, results)
head(smarts_results_df)
## CID MolecularWeight ConnectivitySMILES
## 1 2881855 353.21 COC1=C(C=C(C=C1)C(=O)C[N+]2=CN(C=C2)C=C)OC.[Br-]
## 2 23724184 378.08 C=CN1C=C[N+](=C1)CC(=O)C2=CC=C(S2)Br.[Br-]
## 3 2881236 362.0 C=CN1C=C[N+](=C1)CC(=O)C2=CC(=C(C=C2)Cl)Cl.[Br-]
## 4 2881558 307.19 CC1=CC=C(C=C1)C(=O)C[N+]2=CN(C=C2)C=C.[Br-]
## 5 2881232 323.18 COC1=CC=C(C=C1)C(=O)C[N+]2=CN(C=C2)C=C.[Br-]
## 6 2881324 372.05 C=CN1C=C[N+](=C1)CC(=O)C2=CC=C(C=C2)Br.[Br-]
## InChI
## 1 InChI=1S/C15H17N2O3.BrH/c1-4-16-7-8-17(11-16)10-13(18)12-5-6-14(19-2)15(9-12)20-3;/h4-9,11H,1,10H2,2-3H3;1H/q+1;/p-1
## 2 InChI=1S/C11H10BrN2OS.BrH/c1-2-13-5-6-14(8-13)7-9(15)10-3-4-11(12)16-10;/h2-6,8H,1,7H2;1H/q+1;/p-1
## 3 InChI=1S/C13H11Cl2N2O.BrH/c1-2-16-5-6-17(9-16)8-13(18)10-3-4-11(14)12(15)7-10;/h2-7,9H,1,8H2;1H/q+1;/p-1
## 4 InChI=1S/C14H15N2O.BrH/c1-3-15-8-9-16(11-15)10-14(17)13-6-4-12(2)5-7-13;/h3-9,11H,1,10H2,2H3;1H/q+1;/p-1
## 5 InChI=1S/C14H15N2O2.BrH/c1-3-15-8-9-16(11-15)10-14(17)12-4-6-13(18-2)7-5-12;/h3-9,11H,1,10H2,2H3;1H/q+1;/p-1
## 6 InChI=1S/C13H12BrN2O.BrH/c1-2-15-7-8-16(10-15)9-13(17)11-3-5-12(14)6-4-11;/h2-8,10H,1,9H2;1H/q+1;/p-1
## IUPACName
## 1 1-(3,4-dimethoxyphenyl)-2-(3-ethenylimidazol-1-ium-1-yl)ethanone bromide
## 2 1-(5-bromothiophen-2-yl)-2-(3-ethenylimidazol-1-ium-1-yl)ethanone bromide
## 3 1-(3,4-dichlorophenyl)-2-(3-ethenylimidazol-1-ium-1-yl)ethanone bromide
## 4 2-(3-ethenylimidazol-1-ium-1-yl)-1-(4-methylphenyl)ethanone bromide
## 5 2-(3-ethenylimidazol-1-ium-1-yl)-1-(4-methoxyphenyl)ethanone bromide
## 6 1-(4-bromophenyl)-2-(3-ethenylimidazol-1-ium-1-yl)ethanone bromide
## Charge HeavyAtomCount CovalentUnitCount
## 1 0 21 2
## 2 0 17 2
## 3 0 19 2
## 4 0 18 2
## 5 0 19 2
## 6 0 18 2

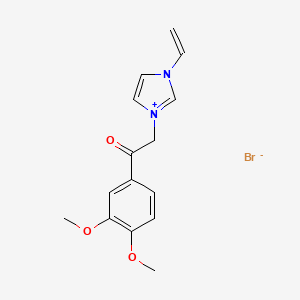

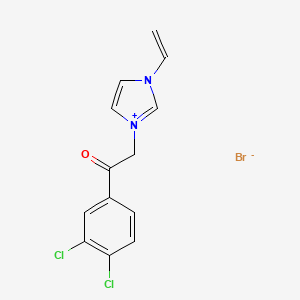

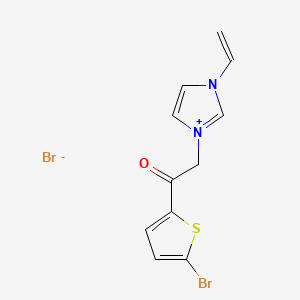

Retrieve Images of CID Compounds from SMARTS query match#
Create the results images:
content <- list()
for(cid in sq_cids[1:3]) {
url <- paste0(BASE_URL, "cid/", cid, "/PNG");
content[[length(content) + 1]] <- GET(url)$content
Sys.sleep(0.25)
}
image_read(content[[1]])
image_read(content[[2]])
image_read(content[[3]])
