CAS Common Chemistry API in R#
by Adam M. Nguyen and Michael T. Moen
The CAS Common Chemistry API provides programmatic access to a curated subset, offering information on nearly 500,000 chemical substances.
Please see the following resources for more information on API usage:
Documentation
Terms
Data Reuse
CAS Common Chemistry is provided under the Creative Commons CC BY-NC 4.0 license
NOTE: Please see access details and rate limit requests for this API in the official documentation.
These recipe examples were tested on March 24, 2026.
Setup#
Load Libraries#
The following packages need to be installed into your environment to run the code examples in this tutorial. These packages can be installed with install.packages().
We load the libraries used in this tutorial below:
library(httr)
library(jsonlite)
library(magick)
Import API Key#
An API key is required to access the CAS Common Chemistry API. You can sign up for one at the Request API Access for CAS Common Chemistry page.
We keep our token in a .Renviron file that is stored in the working directory and use Sys.getenv() to access it. The .Renviron should have an entry like the one below.
CAS_API_KEY="PUT_YOUR_API_KEY_HERE"
Below, we can test to whether the key was successfully imported.
if (nzchar(Sys.getenv("CAS_API_KEY"))) {
print("API key successfully loaded.")
} else {
warning("API key not found or is empty.")
}
## [1] "API key successfully loaded."
1. Common Chemistry Record Detail Retrieval#
Common Chemistry is an extremely useful open community resource for accessing chemical information for nearly 500,000 chemical chemistry from the CAS registry. In this example, we detail the steps for accessing a simple example chemical substance, ethyl cyclohexanepropionate.
API Parameter Setup#
First, let’s setup the API parameters for Common Chemistry. Below we are going to provide a variable detail_base_url to query Common Chemistry for details and more specifically. In this example, using a registry number, or as we abbreviate it an rn.
DETAIL_BASE_URL <- "https://commonchemistry.cas.org/api/detail?"
casrn1 <- "10094-36-7" # ethyl cyclohexanepropionate
Request Data from CAS Common Chemistry Detail API#
Using the httr and jsonlite libraries, we query the API and convert the data to a usable format.
url <- paste0(DETAIL_BASE_URL, "cas_rn=", casrn1)
# Use httr's 'GET()' function to retrieve raw data from a URL
casrn1_response <-GET(url, add_headers("X-API-KEY" = Sys.getenv("CAS_API_KEY")))
casrn1_response
## Response [https://commonchemistry.cas.org/api/detail?cas_rn=10094-36-7]
## Date: 2026-03-24 18:05
## Status: 200
## Content-Type: application/json
## Size: 5.31 kB
The GET() function returns Response, Date, Status: 200 indicating a successful request, Size, and Content-Type. In most cases when accessing APIs, the Content-Type returns JSON, so we need the jsonlite to parse it.
# Extract JSON data from the response
casrn1_data <- fromJSON(rawToChar(casrn1_response$content))
casrn1_data
## $uri
## [1] "substance/pt/10094367"
##
## $rn
## [1] "10094-36-7"
##
## $name
## [1] "Ethyl cyclohexanepropionate"
##
## $images
## [1] "<svg width=\"215\" viewBox=\"0 0 215 101\" style=\"fill-opacity:1; color-rendering:auto; color-interpolation:auto; text-rendering:auto; stroke:black; stroke-linecap:square; stroke-miterlimit:10; shape-rendering:auto; stroke-opacity:1; fill:black; stroke-dasharray:none; font-weight:normal; stroke-width:1; font-family:'Open Sans'; font-style:normal; stroke-linejoin:miter; font-size:12; stroke-dashoffset:0; image-rendering:auto;\" height=\"101\" class=\"cas-substance-image\" xmlns:xlink=\"http://www.w3.org/1999/xlink\" xmlns=\"http://www.w3.org/2000/svg\"><svg class=\"cas-substance-single-component\"><rect y=\"0\" x=\"0\" width=\"215\" stroke=\"none\" ry=\"7\" rx=\"7\" height=\"101\" fill=\"white\" class=\"cas-substance-group\"/><svg y=\"0\" x=\"0\" width=\"215\" viewBox=\"0 0 215 101\" style=\"fill:black;\" height=\"101\" class=\"cas-substance-single-component-image\"><svg><g><g transform=\"translate(107,49)\" style=\"text-rendering:geometricPrecision; color-rendering:optimizeQuality; color-interpolation:linearRGB; stroke-linecap:butt; image-rendering:optimizeQuality;\"><line y2=\"0\" y1=\"15\" x2=\"0\" x1=\"-25.98\" style=\"fill:none;\"/><line y2=\"0\" y1=\"15\" x2=\"-51.963\" x1=\"-25.98\" style=\"fill:none;\"/><line y2=\"15\" y1=\"0\" x2=\"25.98\" x1=\"0\" style=\"fill:none;\"/><line y2=\"3.1886\" y1=\"15\" x2=\"46.4398\" x1=\"25.98\" style=\"fill:none;\"/><line y2=\"38.5234\" y1=\"13.9896\" x2=\"24.23\" x1=\"24.23\" style=\"fill:none;\"/><line y2=\"38.5234\" y1=\"13.9897\" x2=\"27.73\" x1=\"27.73\" style=\"fill:none;\"/><line y2=\"15\" y1=\"3.1786\" x2=\"77.943\" x1=\"57.4684\" style=\"fill:none;\"/><line y2=\"0\" y1=\"15\" x2=\"103.923\" x1=\"77.943\" style=\"fill:none;\"/><line y2=\"15\" y1=\"0\" x2=\"-77.943\" x1=\"-51.963\" style=\"fill:none;\"/><line y2=\"-30\" y1=\"0\" x2=\"-51.963\" x1=\"-51.963\" style=\"fill:none;\"/><line y2=\"0\" y1=\"15\" x2=\"-103.923\" x1=\"-77.943\" style=\"fill:none;\"/><line y2=\"-45\" y1=\"-30\" x2=\"-77.943\" x1=\"-51.963\" style=\"fill:none;\"/><line y2=\"-30\" y1=\"0\" x2=\"-103.923\" x1=\"-103.923\" style=\"fill:none;\"/><line y2=\"-30\" y1=\"-45\" x2=\"-103.923\" x1=\"-77.943\" style=\"fill:none;\"/><path style=\"fill:none; stroke-miterlimit:5;\" d=\"M-25.547 14.75 L-25.98 15 L-26.413 14.75\"/><path style=\"fill:none; stroke-miterlimit:5;\" d=\"M-0.433 0.25 L0 0 L0.433 0.25\"/><path style=\"fill:none; stroke-miterlimit:5;\" d=\"M25.547 14.75 L25.98 15 L26.413 14.75\"/></g><g transform=\"translate(107,49)\" style=\"stroke-linecap:butt; fill:rgb(230,0,0); text-rendering:geometricPrecision; color-rendering:optimizeQuality; image-rendering:optimizeQuality; font-family:'Open Sans'; stroke:rgb(230,0,0); color-interpolation:linearRGB; stroke-miterlimit:5;\"><path style=\"stroke:none;\" d=\"M55.9005 -0.0703 Q55.9005 1.9922 54.8614 3.1719 Q53.8224 4.3516 51.9786 4.3516 Q50.088 4.3516 49.0568 3.1875 Q48.0255 2.0234 48.0255 -0.0859 Q48.0255 -2.1797 49.0568 -3.3281 Q50.088 -4.4766 51.9786 -4.4766 Q53.838 -4.4766 54.8693 -3.3047 Q55.9005 -2.1328 55.9005 -0.0703 ZM49.0724 -0.0703 Q49.0724 1.6641 49.8146 2.5703 Q50.5568 3.4766 51.9786 3.4766 Q53.4005 3.4766 54.1271 2.5781 Q54.8536 1.6797 54.8536 -0.0703 Q54.8536 -1.8047 54.1271 -2.6953 Q53.4005 -3.5859 51.9786 -3.5859 Q50.5568 -3.5859 49.8146 -2.6875 Q49.0724 -1.7891 49.0724 -0.0703 Z\"/><path style=\"stroke:none;\" d=\"M29.9175 44.9297 Q29.9175 46.9922 28.8784 48.1719 Q27.8394 49.3516 25.9956 49.3516 Q24.105 49.3516 23.0737 48.1875 Q22.0425 47.0234 22.0425 44.9141 Q22.0425 42.8203 23.0737 41.6719 Q24.105 40.5234 25.9956 40.5234 Q27.855 40.5234 28.8862 41.6953 Q29.9175 42.8672 29.9175 44.9297 ZM23.0894 44.9297 Q23.0894 46.6641 23.8316 47.5703 Q24.5737 48.4766 25.9956 48.4766 Q27.4175 48.4766 28.1441 47.5781 Q28.8706 46.6797 28.8706 44.9297 Q28.8706 43.1953 28.1441 42.3047 Q27.4175 41.4141 25.9956 41.4141 Q24.5737 41.4141 23.8316 42.3125 Q23.0894 43.2109 23.0894 44.9297 Z\"/><path style=\"fill:none; stroke:black;\" d=\"M77.51 14.75 L77.943 15 L78.376 14.75\"/><path style=\"fill:none; stroke:black;\" d=\"M-77.51 14.75 L-77.943 15 L-78.376 14.75\"/><path style=\"fill:none; stroke:black;\" d=\"M-51.963 -29.5 L-51.963 -30 L-52.396 -30.25\"/><path style=\"fill:none; stroke:black;\" d=\"M-103.49 0.25 L-103.923 0 L-103.923 -0.5\"/><path style=\"fill:none; stroke:black;\" d=\"M-77.51 -44.75 L-77.943 -45 L-78.376 -44.75\"/><path style=\"fill:none; stroke:black;\" d=\"M-103.923 -29.5 L-103.923 -30 L-103.49 -30.25\"/></g></g></svg></svg></svg></svg>"
##
## $inchi
## [1] "InChI=1S/C11H20O2/c1-2-13-11(12)9-8-10-6-4-3-5-7-10/h10H,2-9H2,1H3"
##
## $inchiKey
## [1] "InChIKey=NRVPMFHPHGBQLP-UHFFFAOYSA-N"
##
## $smile
## [1] ""
##
## $canonicalSmile
## [1] "O=C(OCC)CCC1CCCCC1"
##
## $molecularFormula
## [1] "C<sub>11</sub>H<sub>20</sub>O<sub>2</sub>"
##
## $molecularMass
## [1] "184.28"
##
## $experimentalProperties
## name property sourceNumber
## 1 Boiling Point 105-113 °C 0
##
## $propertyCitations
## list()
##
## $synonyms
## [1] "Cyclohexanepropanoic acid, ethyl ester"
## [2] "Cyclohexanepropionic acid, ethyl ester"
## [3] "Ethyl cyclohexanepropionate"
## [4] "Ethyl cyclohexylpropanoate"
## [5] "Ethyl 3-cyclohexylpropionate"
## [6] "Ethyl 3-cyclohexylpropanoate"
## [7] "3-Cyclohexylpropionic acid ethyl ester"
## [8] "NSC 71463"
## [9] "Ethyl 3-cyclohexanepropionate"
##
## $replacedRns
## list()
##
## $hasMolfile
## [1] TRUE
Accessing Specific Data#
The $ operator can be used to extract specific parts of casrn1_data.
# Access the canonical SMILE
casrn1_smile <- casrn1_data$canonicalSmile
casrn1_smile
## [1] "O=C(OCC)CCC1CCCCC1"
# Another example may be finding synonyms for Ethyl cyclohexanepropionate
casrn1_synonyms <- casrn1_data$synonyms
casrn1_synonyms
## [1] "Cyclohexanepropanoic acid, ethyl ester"
## [2] "Cyclohexanepropionic acid, ethyl ester"
## [3] "Ethyl cyclohexanepropionate"
## [4] "Ethyl cyclohexylpropanoate"
## [5] "Ethyl 3-cyclohexylpropionate"
## [6] "Ethyl 3-cyclohexylpropanoate"
## [7] "3-Cyclohexylpropionic acid ethyl ester"
## [8] "NSC 71463"
## [9] "Ethyl 3-cyclohexanepropionate"
The methods above work for any parts of the data object, to find a list of the data objects, you can use the ls() function.
ls(casrn1_data)
## [1] "canonicalSmile" "experimentalProperties" "hasMolfile"
## [4] "images" "inchi" "inchiKey"
## [7] "molecularFormula" "molecularMass" "name"
## [10] "propertyCitations" "replacedRns" "rn"
## [13] "smile" "synonyms" "uri"
Given this list we can select different data as seen in previous examples, i.e. casrn1_data$(example).

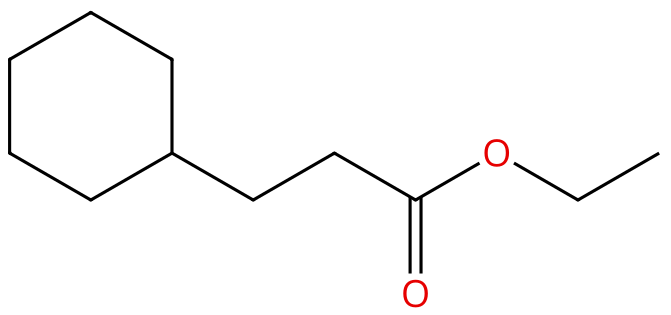

Display the Molecule Drawing#
The images section of the data contains data formatted as Scalable Vector Graphics (SVG). SVG is an XML based vector format for defining two-dimensional graphics and has been an open standard since 1999. Using the SVG data provided by the API, we display the molecule drawing using the package magick, a useful toolkit for image processing in R.
image_str <- charToRaw(casrn1_data$image)
image_read(image_str, density = 300)
2. Common Chemistry API Record Detail Retrieval in a Loop#
In this example, we show how to query Common Chemistry for details given a list of registry numbers.
# Create a list of CAS RNs
casrns <- c(
"10094-36-7",
"10031-92-2",
"10199-61-8",
"10036-21-2",
"1019020-13-3"
)
# Iterate through list of CAS RN and append to list
list <- lapply(casrns, function(casrn) {
url <- paste0(DETAIL_BASE_URL, "cas_rn=", casrn)
response <- GET(url, add_headers("X-API-KEY" = Sys.getenv("CAS_API_KEY")))
casrn_data <- fromJSON(rawToChar(response$content))
Sys.sleep(1)
return(casrn_data)
})
# Show first result in the list
head(list, n = 1)
## [[1]]
## [[1]]$uri
## [1] "substance/pt/10094367"
##
## [[1]]$rn
## [1] "10094-36-7"
##
## [[1]]$name
## [1] "Ethyl cyclohexanepropionate"
##
## [[1]]$images
## [1] "<svg width=\"215\" viewBox=\"0 0 215 101\" style=\"fill-opacity:1; color-rendering:auto; color-interpolation:auto; text-rendering:auto; stroke:black; stroke-linecap:square; stroke-miterlimit:10; shape-rendering:auto; stroke-opacity:1; fill:black; stroke-dasharray:none; font-weight:normal; stroke-width:1; font-family:'Open Sans'; font-style:normal; stroke-linejoin:miter; font-size:12; stroke-dashoffset:0; image-rendering:auto;\" height=\"101\" class=\"cas-substance-image\" xmlns:xlink=\"http://www.w3.org/1999/xlink\" xmlns=\"http://www.w3.org/2000/svg\"><svg class=\"cas-substance-single-component\"><rect y=\"0\" x=\"0\" width=\"215\" stroke=\"none\" ry=\"7\" rx=\"7\" height=\"101\" fill=\"white\" class=\"cas-substance-group\"/><svg y=\"0\" x=\"0\" width=\"215\" viewBox=\"0 0 215 101\" style=\"fill:black;\" height=\"101\" class=\"cas-substance-single-component-image\"><svg><g><g transform=\"translate(107,49)\" style=\"text-rendering:geometricPrecision; color-rendering:optimizeQuality; color-interpolation:linearRGB; stroke-linecap:butt; image-rendering:optimizeQuality;\"><line y2=\"0\" y1=\"15\" x2=\"0\" x1=\"-25.98\" style=\"fill:none;\"/><line y2=\"0\" y1=\"15\" x2=\"-51.963\" x1=\"-25.98\" style=\"fill:none;\"/><line y2=\"15\" y1=\"0\" x2=\"25.98\" x1=\"0\" style=\"fill:none;\"/><line y2=\"3.1886\" y1=\"15\" x2=\"46.4398\" x1=\"25.98\" style=\"fill:none;\"/><line y2=\"38.5234\" y1=\"13.9896\" x2=\"24.23\" x1=\"24.23\" style=\"fill:none;\"/><line y2=\"38.5234\" y1=\"13.9897\" x2=\"27.73\" x1=\"27.73\" style=\"fill:none;\"/><line y2=\"15\" y1=\"3.1786\" x2=\"77.943\" x1=\"57.4684\" style=\"fill:none;\"/><line y2=\"0\" y1=\"15\" x2=\"103.923\" x1=\"77.943\" style=\"fill:none;\"/><line y2=\"15\" y1=\"0\" x2=\"-77.943\" x1=\"-51.963\" style=\"fill:none;\"/><line y2=\"-30\" y1=\"0\" x2=\"-51.963\" x1=\"-51.963\" style=\"fill:none;\"/><line y2=\"0\" y1=\"15\" x2=\"-103.923\" x1=\"-77.943\" style=\"fill:none;\"/><line y2=\"-45\" y1=\"-30\" x2=\"-77.943\" x1=\"-51.963\" style=\"fill:none;\"/><line y2=\"-30\" y1=\"0\" x2=\"-103.923\" x1=\"-103.923\" style=\"fill:none;\"/><line y2=\"-30\" y1=\"-45\" x2=\"-103.923\" x1=\"-77.943\" style=\"fill:none;\"/><path style=\"fill:none; stroke-miterlimit:5;\" d=\"M-25.547 14.75 L-25.98 15 L-26.413 14.75\"/><path style=\"fill:none; stroke-miterlimit:5;\" d=\"M-0.433 0.25 L0 0 L0.433 0.25\"/><path style=\"fill:none; stroke-miterlimit:5;\" d=\"M25.547 14.75 L25.98 15 L26.413 14.75\"/></g><g transform=\"translate(107,49)\" style=\"stroke-linecap:butt; fill:rgb(230,0,0); text-rendering:geometricPrecision; color-rendering:optimizeQuality; image-rendering:optimizeQuality; font-family:'Open Sans'; stroke:rgb(230,0,0); color-interpolation:linearRGB; stroke-miterlimit:5;\"><path style=\"stroke:none;\" d=\"M55.9005 -0.0703 Q55.9005 1.9922 54.8614 3.1719 Q53.8224 4.3516 51.9786 4.3516 Q50.088 4.3516 49.0568 3.1875 Q48.0255 2.0234 48.0255 -0.0859 Q48.0255 -2.1797 49.0568 -3.3281 Q50.088 -4.4766 51.9786 -4.4766 Q53.838 -4.4766 54.8693 -3.3047 Q55.9005 -2.1328 55.9005 -0.0703 ZM49.0724 -0.0703 Q49.0724 1.6641 49.8146 2.5703 Q50.5568 3.4766 51.9786 3.4766 Q53.4005 3.4766 54.1271 2.5781 Q54.8536 1.6797 54.8536 -0.0703 Q54.8536 -1.8047 54.1271 -2.6953 Q53.4005 -3.5859 51.9786 -3.5859 Q50.5568 -3.5859 49.8146 -2.6875 Q49.0724 -1.7891 49.0724 -0.0703 Z\"/><path style=\"stroke:none;\" d=\"M29.9175 44.9297 Q29.9175 46.9922 28.8784 48.1719 Q27.8394 49.3516 25.9956 49.3516 Q24.105 49.3516 23.0737 48.1875 Q22.0425 47.0234 22.0425 44.9141 Q22.0425 42.8203 23.0737 41.6719 Q24.105 40.5234 25.9956 40.5234 Q27.855 40.5234 28.8862 41.6953 Q29.9175 42.8672 29.9175 44.9297 ZM23.0894 44.9297 Q23.0894 46.6641 23.8316 47.5703 Q24.5737 48.4766 25.9956 48.4766 Q27.4175 48.4766 28.1441 47.5781 Q28.8706 46.6797 28.8706 44.9297 Q28.8706 43.1953 28.1441 42.3047 Q27.4175 41.4141 25.9956 41.4141 Q24.5737 41.4141 23.8316 42.3125 Q23.0894 43.2109 23.0894 44.9297 Z\"/><path style=\"fill:none; stroke:black;\" d=\"M77.51 14.75 L77.943 15 L78.376 14.75\"/><path style=\"fill:none; stroke:black;\" d=\"M-77.51 14.75 L-77.943 15 L-78.376 14.75\"/><path style=\"fill:none; stroke:black;\" d=\"M-51.963 -29.5 L-51.963 -30 L-52.396 -30.25\"/><path style=\"fill:none; stroke:black;\" d=\"M-103.49 0.25 L-103.923 0 L-103.923 -0.5\"/><path style=\"fill:none; stroke:black;\" d=\"M-77.51 -44.75 L-77.943 -45 L-78.376 -44.75\"/><path style=\"fill:none; stroke:black;\" d=\"M-103.923 -29.5 L-103.923 -30 L-103.49 -30.25\"/></g></g></svg></svg></svg></svg>"
##
## [[1]]$inchi
## [1] "InChI=1S/C11H20O2/c1-2-13-11(12)9-8-10-6-4-3-5-7-10/h10H,2-9H2,1H3"
##
## [[1]]$inchiKey
## [1] "InChIKey=NRVPMFHPHGBQLP-UHFFFAOYSA-N"
##
## [[1]]$smile
## [1] ""
##
## [[1]]$canonicalSmile
## [1] "O=C(OCC)CCC1CCCCC1"
##
## [[1]]$molecularFormula
## [1] "C<sub>11</sub>H<sub>20</sub>O<sub>2</sub>"
##
## [[1]]$molecularMass
## [1] "184.28"
##
## [[1]]$experimentalProperties
## name property sourceNumber
## 1 Boiling Point 105-113 °C 0
##
## [[1]]$propertyCitations
## list()
##
## [[1]]$synonyms
## [1] "Cyclohexanepropanoic acid, ethyl ester"
## [2] "Cyclohexanepropionic acid, ethyl ester"
## [3] "Ethyl cyclohexanepropionate"
## [4] "Ethyl cyclohexylpropanoate"
## [5] "Ethyl 3-cyclohexylpropionate"
## [6] "Ethyl 3-cyclohexylpropanoate"
## [7] "3-Cyclohexylpropionic acid ethyl ester"
## [8] "NSC 71463"
## [9] "Ethyl 3-cyclohexanepropionate"
##
## [[1]]$replacedRns
## list()
##
## [[1]]$hasMolfile
## [1] TRUE
We now have a list of sub-lists of data corresponding to the CAS RNs.
Display Images#
# Use 'lapply' to iterate through list and convert our image data to a readable format
imgs <- lapply(list, function(x) {charToRaw(x$image)})
# Use 'image_read()' to read SVGs
# "Ethyl cyclohexanepropionate"
image_read(imgs[[1]], density = 300)

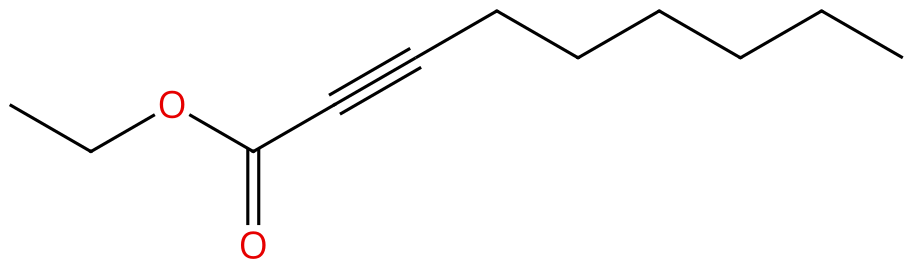

# "Ethyl 2-nonynoate"
image_read(imgs[[2]], density = 300)

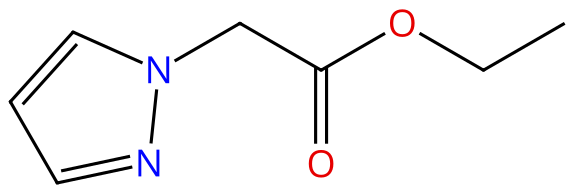

# "Ethyl 1<em>H</em>-pyrazole-1-acetate"
image_read(imgs[[3]], density = 300)

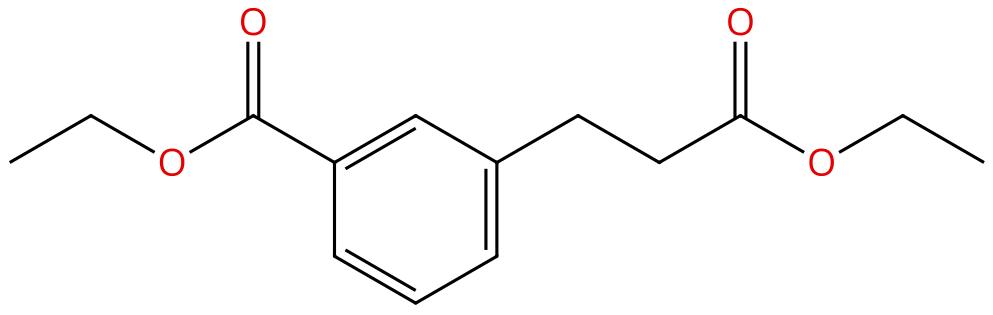

# "Ethyl 3-(ethoxycarbonyl)benzenepropanoate"
image_read(imgs[[4]], density = 300)

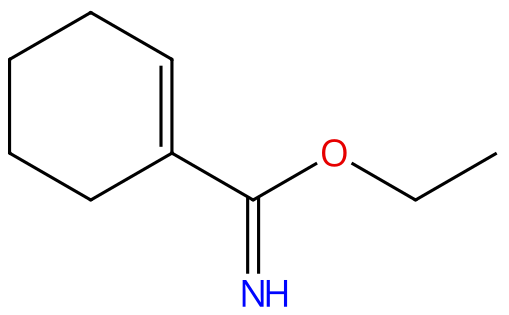

# "Ethyl 1-cyclohexene-1-carboximidate"
image_read(imgs[[5]], density = 300)
Select Specific Data#
We use lapply() to iterate through the list and grab each sub-list’s canonicalSmile.
# Apply function(i) to receive canonicalSmiles for every instance in the list
cansmiles <- lapply(list, function(i) {i$canonicalSmile})
unlist(cansmiles) # Flatten list
## [1] "O=C(OCC)CCC1CCCCC1" "O=C(C#CCCCCCC)OCC"
## [3] "O=C(OCC)CN1N=CC=C1" "O=C(OCC)C1=CC=CC(=C1)CCC(=O)OCC"
## [5] "N=C(OCC)C1=CCCCC1"
Through similar means, we can also iterate through the list and grab each sub-list’s synonyms.
synonyms_list <- lapply(list, function(j) {j$synonyms})
synonyms_list
## [[1]]
## [1] "Cyclohexanepropanoic acid, ethyl ester"
## [2] "Cyclohexanepropionic acid, ethyl ester"
## [3] "Ethyl cyclohexanepropionate"
## [4] "Ethyl cyclohexylpropanoate"
## [5] "Ethyl 3-cyclohexylpropionate"
## [6] "Ethyl 3-cyclohexylpropanoate"
## [7] "3-Cyclohexylpropionic acid ethyl ester"
## [8] "NSC 71463"
## [9] "Ethyl 3-cyclohexanepropionate"
##
## [[2]]
## [1] "2-Nonynoic acid, ethyl ester" "Ethyl 2-nonynoate"
## [3] "NSC 190985"
##
## [[3]]
## [1] "1<em>H</em>-Pyrazole-1-acetic acid, ethyl ester"
## [2] "Pyrazole-1-acetic acid, ethyl ester"
## [3] "Ethyl 1<em>H</em>-pyrazole-1-acetate"
## [4] "Ethyl 1-pyrazoleacetate"
## [5] "Ethyl 2-(1<em>H</em>-pyrazol-1-yl)acetate"
##
## [[4]]
## [1] "Benzenepropanoic acid, 3-(ethoxycarbonyl)-, ethyl ester"
## [2] "Hydrocinnamic acid, <em>m</em>-carboxy-, diethyl ester"
## [3] "Ethyl 3-(ethoxycarbonyl)benzenepropanoate"
##
## [[5]]
## [1] "1-Cyclohexene-1-carboximidic acid, ethyl ester"
## [2] "Ethyl 1-cyclohexene-1-carboximidate"
# Use the unlist() function to flatten our list of synonyms
flatsyns <- unlist(synonyms_list)
flatsyns
## [1] "Cyclohexanepropanoic acid, ethyl ester"
## [2] "Cyclohexanepropionic acid, ethyl ester"
## [3] "Ethyl cyclohexanepropionate"
## [4] "Ethyl cyclohexylpropanoate"
## [5] "Ethyl 3-cyclohexylpropionate"
## [6] "Ethyl 3-cyclohexylpropanoate"
## [7] "3-Cyclohexylpropionic acid ethyl ester"
## [8] "NSC 71463"
## [9] "Ethyl 3-cyclohexanepropionate"
## [10] "2-Nonynoic acid, ethyl ester"
## [11] "Ethyl 2-nonynoate"
## [12] "NSC 190985"
## [13] "1<em>H</em>-Pyrazole-1-acetic acid, ethyl ester"
## [14] "Pyrazole-1-acetic acid, ethyl ester"
## [15] "Ethyl 1<em>H</em>-pyrazole-1-acetate"
## [16] "Ethyl 1-pyrazoleacetate"
## [17] "Ethyl 2-(1<em>H</em>-pyrazol-1-yl)acetate"
## [18] "Benzenepropanoic acid, 3-(ethoxycarbonyl)-, ethyl ester"
## [19] "Hydrocinnamic acid, <em>m</em>-carboxy-, diethyl ester"
## [20] "Ethyl 3-(ethoxycarbonyl)benzenepropanoate"
## [21] "1-Cyclohexene-1-carboximidic acid, ethyl ester"
## [22] "Ethyl 1-cyclohexene-1-carboximidate"
Create Data Frame#
Let’s create a data frame from list with the variables uri, rn, name, inchiKey, canonicalSmile, and molecularMass.
df <- data.frame(do.call
# Iterate through list of chemicals with function(i) and append to df
(rbind, lapply(list, function(item)
cbind(
item["uri"],
item["rn"],
item["name"],
item["inchiKey"],
item["canonicalSmile"],
item["molecularMass"]
))),
row.names = NULL)
names(df) <- c("uri", "rn", "name", "inchiKey", "canonicalSmile", "molecularMass")
# Display df
df
## uri rn
## 1 substance/pt/10094367 10094-36-7
## 2 substance/pt/10031922 10031-92-2
## 3 substance/pt/10199618 10199-61-8
## 4 substance/pt/10036212 10036-21-2
## 5 substance/pt/1019020133 1019020-13-3
## name
## 1 Ethyl cyclohexanepropionate
## 2 Ethyl 2-nonynoate
## 3 Ethyl 1<em>H</em>-pyrazole-1-acetate
## 4 Ethyl 3-(ethoxycarbonyl)benzenepropanoate
## 5 Ethyl 1-cyclohexene-1-carboximidate
## inchiKey canonicalSmile
## 1 InChIKey=NRVPMFHPHGBQLP-UHFFFAOYSA-N O=C(OCC)CCC1CCCCC1
## 2 InChIKey=BFZNMUGAZYAMTG-UHFFFAOYSA-N O=C(C#CCCCCCC)OCC
## 3 InChIKey=SEHJVNBWAGPXSM-UHFFFAOYSA-N O=C(OCC)CN1N=CC=C1
## 4 InChIKey=HDGSRVUQMHJTDH-UHFFFAOYSA-N O=C(OCC)C1=CC=CC(=C1)CCC(=O)OCC
## 5 InChIKey=OYGZRJWLVOOMBM-UHFFFAOYSA-N N=C(OCC)C1=CCCCC1
## molecularMass
## 1 184.28
## 2 182.26
## 3 154.17
## 4 250.29
## 5 153.22
3. Common Chemistry#
In addition to the /detail endpoint, the CAS Common Chemistry API has a /search endpoint that allows searching by CAS RN, SMILES, InChI/InChIKey, and name.
Request data form CAS Common Chemistry Search API#
SEARCH_BASE_URL <- "https://commonchemistry.cas.org/api/search?q="
# InChIKey for Quinine
IK <- "InChIKey=LOUPRKONTZGTKE-WZBLMQSHSA-N"
url <- paste0(SEARCH_BASE_URL, IK)
search_response <- GET(url, add_headers("X-API-KEY" = Sys.getenv("CAS_API_KEY")))
search_response
## Response [https://commonchemistry.cas.org/api/search?q=InChIKey=LOUPRKONTZGTKE-WZBLMQSHSA-N]
## Date: 2026-03-24 18:05
## Status: 200
## Content-Type: application/json
## Size: 17.5 kB
Like before, we need to access the content part of the data to retrieve what we are interested. This data is stored in JSON.
# Extract JSON data from response
quinine_rn <- fromJSON(rawToChar(search_response$content))
quinine_rn
## $count
## [1] 1
##
## $results
## rn name
## 1 130-95-0 Quinine
## images
## 1 <svg width="280" viewBox="0 0 280 172" style="fill-opacity:1; color-rendering:auto; color-interpolation:auto; text-rendering:auto; stroke:black; stroke-linecap:square; stroke-miterlimit:10; shape-rendering:auto; stroke-opacity:1; fill:black; stroke-dasharray:none; font-weight:normal; stroke-width:1; font-family:'Open Sans'; font-style:normal; stroke-linejoin:miter; font-size:12; stroke-dashoffset:0; image-rendering:auto;" height="172" class="cas-substance-image" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns="http://www.w3.org/2000/svg"><svg class="cas-substance-single-component"><rect y="0" x="0" width="280" stroke="none" ry="7" rx="7" height="172" fill="white" class="cas-substance-group"/><svg y="0" x="0" width="280" viewBox="0 0 280 172" style="fill:black;" height="172" class="cas-substance-single-component-image"><svg><g><clipPath id="clipPath_73ce9e029de349d4acbc2c61f269f6f61" clipPathUnits="userSpaceOnUse"><path d="M36.2428 -48.9389 L36.2012 -8.9389 L72.6092 -8.9011 L72.6507 -48.9011 L58.0514 -48.9162 L58.0514 -48.9162 L46.7031 -10.8966 L40.9538 -12.6127 L51.7918 -48.9227 L51.7918 -48.9227 L36.2428 -48.9389 Z"/></clipPath><g transform="translate(140,86)" style="text-rendering:geometricPrecision; color-rendering:optimizeQuality; color-interpolation:linearRGB; stroke-linecap:butt; image-rendering:optimizeQuality;"><path style="stroke:none;" d="M-1.52 0.527 L-2.386 1.027 L-16.2975 -18.0701 L-11.1012 -21.0699 Z"/><line y2="26.757" y1="0.777" x2="-16.953" x1="-1.953" style="fill:none;"/><line y2="0.777" y1="0.777" x2="28.047" x1="-1.953" style="fill:none;"/><line y2="-25.206" y1="-25.206" x2="-136.953" x1="-112.8905" style="fill:none;"/><line y2="0.777" y1="-19.57" x2="-91.953" x1="-103.6994" style="fill:none;"/><line y2="-49.227" y1="-65.346" x2="136.953" x1="111.651" style="fill:none;"/><line y2="-46.2751" y1="-61.3084" x2="135.0725" x1="111.4747" style="fill:none;"/><path style="stroke:none;" d="M85.2719 -51.0485 L84.8101 -51.9355 L108.9981 -67.6289 L114.8412 -63.9065 Z"/><line y2="26.757" y1="26.757" x2="-16.953" x1="-46.953" style="fill:none;"/><line y2="52.737" y1="26.757" x2="-61.953" x1="-46.953" style="fill:none;"/><line y2="52.737" y1="30.257" x2="-57.9115" x1="-44.9323" style="fill:none;"/><line y2="0.777" y1="26.757" x2="-61.953" x1="-46.953" style="fill:none;"/><line y2="52.737" y1="26.757" x2="-1.953" x1="-16.953" style="fill:none;"/><line y2="52.737" y1="30.257" x2="-5.9945" x1="-18.9737" style="fill:none;"/><line y2="52.737" y1="52.737" x2="-91.953" x1="-61.953" style="fill:none;"/><line y2="72.5787" y1="52.737" x2="-50.497" x1="-61.953" style="fill:none;"/><line y2="0.777" y1="0.777" x2="-91.953" x1="-61.953" style="fill:none;"/><line y2="4.277" y1="4.277" x2="-89.9323" x1="-63.9737" style="fill:none;"/><line y2="78.717" y1="52.737" x2="-16.953" x1="-1.953" style="fill:none;"/><line y2="26.757" y1="52.737" x2="-106.953" x1="-91.953" style="fill:none;"/><line y2="26.7569" y1="49.237" x2="-102.9115" x1="-89.9323" style="fill:none;"/><line y2="78.717" y1="78.717" x2="-16.953" x1="-41.6014" style="fill:none;"/><line y2="75.217" y1="75.217" x2="-18.9737" x1="-41.6014" style="fill:none;"/><line y2="26.757" y1="0.777" x2="-106.953" x1="-91.953" style="fill:none;"/><line y2="-22.9227" y1="0.777" x2="37.5589" x1="28.047" style="fill:none;"/><path style="stroke:none;" d="M28.3927 1.1383 L27.7013 0.4157 L47.1148 -21.0165 L43.6455 -9.3935 Z"/><path style="clip-path:url(#clipPath_73ce9e029de349d4acbc2c61f269f6f61); stroke:none;" d="M45.323 -28.4294 L45.3241 -29.4294 L71.4315 -31.6118 L67.1417 -25.6163 Z"/><line y2="-52.179" y1="-34.1312" x2="18.984" x1="35.2801" style="fill:none;"/><line y2="-51.189" y1="-15.348" x2="55.599" x1="44.901" style="fill:none;"/><line y2="-51.492" y1="-28.905" x2="85.041" x1="68.88" style="fill:none;"/><line y2="-75.186" y1="-52.179" x2="33.555" x1="18.984" style="fill:none;"/><line y2="-51.492" y1="-51.189" x2="85.041" x1="55.599" style="fill:none;"/><line y2="-75.186" y1="-51.189" x2="33.555" x1="55.599" style="fill:none;"/><path style="stroke:none;" d="M28.8064 1.1461 L27.7536 1.5689 L28.0263 2.5369 L29.2786 2.0339 L28.8064 1.1461 ZM30.2231 3.8096 L28.5717 4.473 L28.5717 4.473 L28.8444 5.441 L28.8444 5.441 L30.6953 4.6975 L30.2231 3.8096 ZM31.6398 6.4732 L29.3899 7.377 L29.6626 8.345 L29.6626 8.345 L32.112 7.3611 L32.112 7.3611 L31.6398 6.4732 ZM33.0565 9.1368 L30.208 10.281 L30.208 10.281 L30.4807 11.249 L30.4807 11.249 L33.5287 10.0247 L33.0565 9.1368 ZM34.4732 11.8004 L31.0261 13.1851 L31.0261 13.1851 L31.2988 14.1531 L31.2988 14.1531 L34.9454 12.6883 L34.4732 11.8004 ZM35.8899 14.464 L31.8442 16.0891 L32.1169 17.0571 L32.1169 17.0571 L36.3621 15.3519 L35.8899 14.464 ZM37.3066 17.1276 L32.6624 18.9931 L32.9351 19.9611 L32.9351 19.9611 L37.7788 18.0154 L37.7788 18.0154 L37.3066 17.1276 ZM38.7233 19.7912 L33.4805 21.8971 L33.7532 22.8652 L39.1955 20.679 L39.1955 20.679 L38.7233 19.7912 Z"/><path style="stroke:none;" d="M56.0578 -50.9903 L55.1402 -51.3877 L62.1732 -73.9177 L67.6791 -71.5332 Z"/></g><g transform="translate(140,86)" style="font-size:8.4px; fill:gray; text-rendering:geometricPrecision; image-rendering:optimizeQuality; color-rendering:optimizeQuality; font-family:'Open Sans'; font-style:italic; stroke:gray; color-interpolation:linearRGB;"><path style="stroke:none;" d="M-1.3417 -6.7193 Q-1.3417 -8.0474 -0.873 -9.1724 Q-0.4042 -10.2974 0.627 -11.3755 L1.2364 -11.3755 Q0.2676 -10.313 -0.2167 -9.1411 Q-0.7011 -7.9693 -0.7011 -6.7349 Q-0.7011 -5.4068 -0.2636 -4.3911 L-0.7792 -4.3911 Q-1.3417 -5.4224 -1.3417 -6.7193 ZM2.2183 -8.0318 L1.7183 -5.6568 L1.0621 -5.6568 L2.2652 -11.3755 L3.5152 -11.3755 Q5.2496 -11.3755 5.2496 -9.938 Q5.2496 -8.5786 3.8121 -8.188 L4.7496 -5.6568 L4.0308 -5.6568 L3.2027 -8.0318 L2.2183 -8.0318 ZM2.7964 -10.7818 Q2.4058 -8.8599 2.3433 -8.6099 L2.9996 -8.6099 Q3.7496 -8.6099 4.1558 -8.938 Q4.5621 -9.2661 4.5621 -9.8911 Q4.5621 -10.3599 4.3042 -10.5708 Q4.0464 -10.7818 3.4527 -10.7818 L2.7964 -10.7818 ZM7.4355 -9.0318 Q7.4355 -7.7036 6.959 -6.5708 Q6.4824 -5.438 5.4668 -4.3911 L4.8574 -4.3911 Q6.7949 -6.5474 6.7949 -9.0318 Q6.7949 -10.3599 6.3574 -11.3755 L6.873 -11.3755 Q7.4355 -10.313 7.4355 -9.0318 Z"/></g><g transform="translate(140,86)" style="fill:rgb(230,0,0); text-rendering:geometricPrecision; color-rendering:optimizeQuality; image-rendering:optimizeQuality; font-family:'Open Sans'; stroke:rgb(230,0,0); color-interpolation:linearRGB;"><path style="stroke:none;" d="M-13.0155 -25.2763 Q-13.0155 -23.2138 -14.0546 -22.0341 Q-15.0936 -20.8544 -16.9374 -20.8544 Q-18.828 -20.8544 -19.8593 -22.0185 Q-20.8905 -23.1826 -20.8905 -25.2919 Q-20.8905 -27.3857 -19.8593 -28.5341 Q-18.828 -29.6826 -16.9374 -29.6826 Q-15.078 -29.6826 -14.0468 -28.5107 Q-13.0155 -27.3388 -13.0155 -25.2763 ZM-19.8436 -25.2763 Q-19.8436 -23.5419 -19.1014 -22.6357 Q-18.3593 -21.7294 -16.9374 -21.7294 Q-15.5155 -21.7294 -14.7889 -22.6279 Q-14.0624 -23.5263 -14.0624 -25.2763 Q-14.0624 -27.0107 -14.7889 -27.9013 Q-15.5155 -28.7919 -16.9374 -28.7919 Q-18.3593 -28.7919 -19.1014 -27.8935 Q-19.8436 -26.9951 -19.8436 -25.2763 Z"/><path style="stroke:none;" d="M-21.8905 -20.9794 L-22.8905 -20.9794 L-22.8905 -25.0107 L-27.4061 -25.0107 L-27.4061 -20.9794 L-28.4061 -20.9794 L-28.4061 -29.5419 L-27.4061 -29.5419 L-27.4061 -25.9013 L-22.8905 -25.9013 L-22.8905 -29.5419 L-21.8905 -29.5419 L-21.8905 -20.9794 Z"/><path style="stroke:none;" d="M-103.0155 -25.2763 Q-103.0155 -23.2138 -104.0546 -22.0341 Q-105.0936 -20.8544 -106.9374 -20.8544 Q-108.828 -20.8544 -109.8592 -22.0185 Q-110.8905 -23.1826 -110.8905 -25.2919 Q-110.8905 -27.3857 -109.8592 -28.5341 Q-108.828 -29.6826 -106.9374 -29.6826 Q-105.078 -29.6826 -104.0467 -28.5107 Q-103.0155 -27.3388 -103.0155 -25.2763 ZM-109.8436 -25.2763 Q-109.8436 -23.5419 -109.1014 -22.6357 Q-108.3592 -21.7294 -106.9374 -21.7294 Q-105.5155 -21.7294 -104.7889 -22.6279 Q-104.0624 -23.5263 -104.0624 -25.2763 Q-104.0624 -27.0107 -104.7889 -27.9013 Q-105.5155 -28.7919 -106.9374 -28.7919 Q-108.3592 -28.7919 -109.1014 -27.8935 Q-109.8436 -26.9951 -109.8436 -25.2763 Z"/></g><g transform="translate(140,86)" style="stroke-linecap:butt; text-rendering:geometricPrecision; color-rendering:optimizeQuality; image-rendering:optimizeQuality; font-family:'Open Sans'; color-interpolation:linearRGB; stroke-miterlimit:5;"><path style="fill:none;" d="M-47.203 27.19 L-46.953 26.757 L-46.453 26.757"/><path style="fill:none;" d="M-16.703 27.19 L-16.953 26.757 L-16.703 26.324"/><path style="fill:none;" d="M-61.703 52.304 L-61.953 52.737 L-62.453 52.737"/><path style="fill:none;" d="M-61.703 1.21 L-61.953 0.777 L-62.453 0.777"/><path style="fill:none;" d="M-2.203 52.304 L-1.953 52.737 L-2.203 53.17"/><path style="fill:none;" d="M-91.453 52.737 L-91.953 52.737 L-92.203 52.304"/><path style="fill:rgb(0,5,255); stroke:none;" d="M-43.6014 82.8732 L-44.7421 82.8732 L-49.4296 75.6857 L-49.4764 75.6857 Q-49.3827 76.9514 -49.3827 77.9982 L-49.3827 82.8732 L-50.3046 82.8732 L-50.3046 74.3107 L-49.1796 74.3107 L-44.5077 81.467 L-44.4608 81.467 Q-44.4608 81.3107 -44.5077 80.4514 Q-44.5546 79.592 -44.5389 79.217 L-44.5389 74.3107 L-43.6014 74.3107 L-43.6014 82.8732 Z"/><path style="fill:none;" d="M-91.453 0.777 L-91.953 0.777 L-92.203 0.344"/><path style="fill:none;" d="M-16.703 78.284 L-16.953 78.717 L-17.453 78.717"/><path style="fill:none;" d="M-106.703 27.19 L-106.953 26.757 L-106.703 26.324"/><path style="fill:none;" d="M28.2333 1.241 L28.047 0.777 L27.547 0.777"/></g><g transform="translate(140,86)" style="stroke-linecap:butt; font-size:8.4px; fill:gray; text-rendering:geometricPrecision; image-rendering:optimizeQuality; color-rendering:optimizeQuality; font-family:'Open Sans'; font-style:italic; stroke:gray; color-interpolation:linearRGB; stroke-miterlimit:5;"><path style="stroke:none;" d="M18.3372 10.2642 Q18.3372 8.9361 18.8059 7.8111 Q19.2747 6.6861 20.3059 5.6079 L20.9153 5.6079 Q19.9466 6.6704 19.4622 7.8423 Q18.9778 9.0142 18.9778 10.2486 Q18.9778 11.5767 19.4153 12.5923 L18.8997 12.5923 Q18.3372 11.5611 18.3372 10.2642 ZM23.9597 9.6704 Q23.9597 10.4986 23.4129 10.9517 Q22.866 11.4048 21.866 11.4048 Q21.4597 11.4048 21.1472 11.3501 Q20.8347 11.2954 20.5535 11.1548 L20.5535 10.4986 Q21.1785 10.8267 21.8816 10.8267 Q22.5066 10.8267 22.8816 10.5298 Q23.2566 10.2329 23.2566 9.7173 Q23.2566 9.4048 23.0535 9.1782 Q22.8504 8.9517 22.2879 8.6236 Q21.6941 8.2954 21.4676 7.9673 Q21.241 7.6392 21.241 7.1861 Q21.241 6.4517 21.7566 5.9907 Q22.2722 5.5298 23.116 5.5298 Q23.491 5.5298 23.8269 5.6079 Q24.1629 5.6861 24.5379 5.8579 L24.2722 6.4517 Q24.0222 6.2954 23.7019 6.2095 Q23.3816 6.1236 23.116 6.1236 Q22.5847 6.1236 22.2644 6.397 Q21.9441 6.6704 21.9441 7.1392 Q21.9441 7.3423 22.0144 7.4907 Q22.0847 7.6392 22.2254 7.772 Q22.366 7.9048 22.7879 8.1548 Q23.3504 8.4986 23.5535 8.6939 Q23.7566 8.8892 23.8582 9.1236 Q23.9597 9.3579 23.9597 9.6704 ZM26.5542 7.9517 Q26.5542 9.2798 26.0777 10.4126 Q25.6011 11.5454 24.5855 12.5923 L23.9761 12.5923 Q25.9136 10.4361 25.9136 7.9517 Q25.9136 6.6236 25.4761 5.6079 L25.9917 5.6079 Q26.5542 6.6704 26.5542 7.9517 Z"/></g><g transform="translate(140,86)" style="stroke-linecap:butt; fill:rgb(0,5,255); text-rendering:geometricPrecision; color-rendering:optimizeQuality; image-rendering:optimizeQuality; font-family:'Open Sans'; stroke:rgb(0,5,255); color-interpolation:linearRGB; stroke-miterlimit:5;"><path style="stroke:none;" d="M43.3236 -24.7787 L42.1829 -24.7787 L37.4954 -31.9662 L37.4486 -31.9662 Q37.5423 -30.7006 37.5423 -29.6537 L37.5423 -24.7787 L36.6204 -24.7787 L36.6204 -33.3412 L37.7454 -33.3412 L42.4173 -26.185 L42.4642 -26.185 Q42.4642 -26.3412 42.4173 -27.2006 Q42.3704 -28.06 42.3861 -28.435 L42.3861 -33.3412 L43.3236 -33.3412 L43.3236 -24.7787 Z"/></g><g transform="translate(140,86)" style="stroke-linecap:butt; font-size:8.4px; fill:gray; text-rendering:geometricPrecision; image-rendering:optimizeQuality; color-rendering:optimizeQuality; font-family:'Open Sans'; font-style:italic; stroke:gray; color-interpolation:linearRGB; stroke-miterlimit:5;"><path style="stroke:none;" d="M25.6349 -25.9088 Q25.6349 -27.2369 26.1037 -28.3619 Q26.5724 -29.4869 27.6037 -30.565 L28.213 -30.565 Q27.2443 -29.5025 26.7599 -28.3307 Q26.2755 -27.1588 26.2755 -25.9244 Q26.2755 -24.5963 26.713 -23.5807 L26.1974 -23.5807 Q25.6349 -24.6119 25.6349 -25.9088 ZM31.2575 -26.5025 Q31.2575 -25.6744 30.7106 -25.2213 Q30.1637 -24.7682 29.1637 -24.7682 Q28.7575 -24.7682 28.445 -24.8228 Q28.1325 -24.8775 27.8512 -25.0182 L27.8512 -25.6744 Q28.4762 -25.3463 29.1793 -25.3463 Q29.8043 -25.3463 30.1793 -25.6432 Q30.5543 -25.94 30.5543 -26.4557 Q30.5543 -26.7682 30.3512 -26.9947 Q30.1481 -27.2213 29.5856 -27.5494 Q28.9918 -27.8775 28.7653 -28.2057 Q28.5387 -28.5338 28.5387 -28.9869 Q28.5387 -29.7213 29.0543 -30.1822 Q29.57 -30.6432 30.4137 -30.6432 Q30.7887 -30.6432 31.1247 -30.565 Q31.4606 -30.4869 31.8356 -30.315 L31.57 -29.7213 Q31.32 -29.8775 30.9997 -29.9635 Q30.6793 -30.0494 30.4137 -30.0494 Q29.8825 -30.0494 29.5622 -29.776 Q29.2418 -29.5025 29.2418 -29.0338 Q29.2418 -28.8307 29.3122 -28.6822 Q29.3825 -28.5338 29.5231 -28.401 Q29.6637 -28.2682 30.0856 -28.0182 Q30.6481 -27.6744 30.8512 -27.4791 Q31.0543 -27.2838 31.1559 -27.0494 Q31.2575 -26.815 31.2575 -26.5025 ZM33.852 -28.2213 Q33.852 -26.8932 33.3754 -25.7603 Q32.8988 -24.6275 31.8832 -23.5807 L31.2738 -23.5807 Q33.2113 -25.7369 33.2113 -28.2213 Q33.2113 -29.5494 32.7738 -30.565 L33.2895 -30.565 Q33.852 -29.5025 33.852 -28.2213 Z"/><path style="fill:none; stroke:black;" d="M19.3191 -51.8079 L18.984 -52.179 L19.2515 -52.6014"/><path style="stroke:none;" d="M41.7458 -47.7405 Q41.7458 -49.0686 42.2146 -50.1936 Q42.6833 -51.3186 43.7146 -52.3967 L44.324 -52.3967 Q43.3552 -51.3342 42.8708 -50.1624 Q42.3865 -48.9905 42.3865 -47.7561 Q42.3865 -46.428 42.824 -45.4124 L42.3083 -45.4124 Q41.7458 -46.4436 41.7458 -47.7405 ZM47.3684 -48.3342 Q47.3684 -47.5061 46.8215 -47.053 Q46.2746 -46.5999 45.2746 -46.5999 Q44.8684 -46.5999 44.5559 -46.6546 Q44.2434 -46.7092 43.9621 -46.8499 L43.9621 -47.5061 Q44.5871 -47.178 45.2903 -47.178 Q45.9153 -47.178 46.2903 -47.4749 Q46.6653 -47.7717 46.6653 -48.2874 Q46.6653 -48.5999 46.4621 -48.8264 Q46.259 -49.053 45.6965 -49.3811 Q45.1028 -49.7092 44.8762 -50.0374 Q44.6496 -50.3655 44.6496 -50.8186 Q44.6496 -51.553 45.1653 -52.0139 Q45.6809 -52.4749 46.5246 -52.4749 Q46.8996 -52.4749 47.2356 -52.3967 Q47.5715 -52.3186 47.9465 -52.1467 L47.6809 -51.553 Q47.4309 -51.7092 47.1106 -51.7952 Q46.7903 -51.8811 46.5246 -51.8811 Q45.9934 -51.8811 45.6731 -51.6077 Q45.3528 -51.3342 45.3528 -50.8655 Q45.3528 -50.6624 45.4231 -50.5139 Q45.4934 -50.3655 45.634 -50.2327 Q45.7746 -50.0999 46.1965 -49.8499 Q46.759 -49.5061 46.9621 -49.3108 Q47.1653 -49.1155 47.2668 -48.8811 Q47.3684 -48.6467 47.3684 -48.3342 ZM49.9629 -50.053 Q49.9629 -48.7249 49.4863 -47.5921 Q49.0097 -46.4592 47.9941 -45.4124 L47.3847 -45.4124 Q49.3222 -47.5686 49.3222 -50.053 Q49.3222 -51.3811 48.8847 -52.3967 L49.4004 -52.3967 Q49.9629 -51.3342 49.9629 -50.053 Z"/><path style="stroke:none;" d="M87.2076 -42.7762 Q87.2076 -44.1043 87.6764 -45.2293 Q88.1451 -46.3543 89.1764 -47.4325 L89.7858 -47.4325 Q88.817 -46.37 88.3326 -45.1981 Q87.8483 -44.0262 87.8483 -42.7918 Q87.8483 -41.4637 88.2858 -40.4481 L87.7701 -40.4481 Q87.2076 -41.4793 87.2076 -42.7762 ZM90.7677 -44.0887 L90.2677 -41.7137 L89.6114 -41.7137 L90.8146 -47.4325 L92.0646 -47.4325 Q93.7989 -47.4325 93.7989 -45.995 Q93.7989 -44.6356 92.3614 -44.245 L93.2989 -41.7137 L92.5802 -41.7137 L91.7521 -44.0887 L90.7677 -44.0887 ZM91.3458 -46.8387 Q90.9552 -44.9168 90.8927 -44.6668 L91.5489 -44.6668 Q92.2989 -44.6668 92.7052 -44.995 Q93.1114 -45.3231 93.1114 -45.9481 Q93.1114 -46.4168 92.8536 -46.6278 Q92.5958 -46.8387 92.0021 -46.8387 L91.3458 -46.8387 ZM95.9849 -45.0887 Q95.9849 -43.7606 95.5083 -42.6278 Q95.0318 -41.495 94.0162 -40.4481 L93.4068 -40.4481 Q95.3443 -42.6043 95.3443 -45.0887 Q95.3443 -46.4168 94.9068 -47.4325 L95.4224 -47.4325 Q95.9849 -46.37 95.9849 -45.0887 Z"/><path style="fill:none; stroke:black;" d="M33.2875 -74.7636 L33.555 -75.186 L33.8933 -74.8178"/></g><g transform="translate(140,86)" style="stroke-linecap:butt; text-rendering:geometricPrecision; color-rendering:optimizeQuality; image-rendering:optimizeQuality; font-family:'Open Sans'; color-interpolation:linearRGB; stroke-miterlimit:5;"><path style="stroke:none;" d="M42.4798 32.7732 L41.4798 32.7732 L41.4798 28.742 L36.9642 28.742 L36.9642 32.7732 L35.9642 32.7732 L35.9642 24.2107 L36.9642 24.2107 L36.9642 27.8514 L41.4798 27.8514 L41.4798 24.2107 L42.4798 24.2107 L42.4798 32.7732 Z"/><path style="stroke:none;" d="M70.7788 -74.5607 L69.7788 -74.5607 L69.7788 -78.592 L65.2632 -78.592 L65.2632 -74.5607 L64.2632 -74.5607 L64.2632 -83.1232 L65.2632 -83.1232 L65.2632 -79.4826 L69.7788 -79.4826 L69.7788 -83.1232 L70.7788 -83.1232 L70.7788 -74.5607 Z"/></g></g></svg></svg></svg></svg>
Now we have the quinine’s CAS RN, so we can query quinine based on this, similar to the first example.
# Get detailed record for quinine
url <- paste0(DETAIL_BASE_URL, "cas_rn=", quinine_rn$results$rn)
detail_response <- GET(url, add_headers("X-API-KEY" = Sys.getenv("CAS_API_KEY")))
detail_response
## Response [https://commonchemistry.cas.org/api/detail?cas_rn=130-95-0]
## Date: 2026-03-24 18:05
## Status: 200
## Content-Type: application/json
## Size: 19.1 kB
# Convert JSON structure to character format
quinine_data <- fromJSON(rawToChar(detail_response$content))
quinine_data
## $uri
## [1] "substance/pt/130950"
##
## $rn
## [1] "130-95-0"
##
## $name
## [1] "Quinine"
##
## $images
## [1] "<svg width=\"280\" viewBox=\"0 0 280 172\" style=\"fill-opacity:1; color-rendering:auto; color-interpolation:auto; text-rendering:auto; stroke:black; stroke-linecap:square; stroke-miterlimit:10; shape-rendering:auto; stroke-opacity:1; fill:black; stroke-dasharray:none; font-weight:normal; stroke-width:1; font-family:'Open Sans'; font-style:normal; stroke-linejoin:miter; font-size:12; stroke-dashoffset:0; image-rendering:auto;\" height=\"172\" class=\"cas-substance-image\" xmlns:xlink=\"http://www.w3.org/1999/xlink\" xmlns=\"http://www.w3.org/2000/svg\"><svg class=\"cas-substance-single-component\"><rect y=\"0\" x=\"0\" width=\"280\" stroke=\"none\" ry=\"7\" rx=\"7\" height=\"172\" fill=\"white\" class=\"cas-substance-group\"/><svg y=\"0\" x=\"0\" width=\"280\" viewBox=\"0 0 280 172\" style=\"fill:black;\" height=\"172\" class=\"cas-substance-single-component-image\"><svg><g><clipPath id=\"clipPath_73ce9e029de349d4acbc2c61f269f6f61\" clipPathUnits=\"userSpaceOnUse\"><path d=\"M36.2428 -48.9389 L36.2012 -8.9389 L72.6092 -8.9011 L72.6507 -48.9011 L58.0514 -48.9162 L58.0514 -48.9162 L46.7031 -10.8966 L40.9538 -12.6127 L51.7918 -48.9227 L51.7918 -48.9227 L36.2428 -48.9389 Z\"/></clipPath><g transform=\"translate(140,86)\" style=\"text-rendering:geometricPrecision; color-rendering:optimizeQuality; color-interpolation:linearRGB; stroke-linecap:butt; image-rendering:optimizeQuality;\"><path style=\"stroke:none;\" d=\"M-1.52 0.527 L-2.386 1.027 L-16.2975 -18.0701 L-11.1012 -21.0699 Z\"/><line y2=\"26.757\" y1=\"0.777\" x2=\"-16.953\" x1=\"-1.953\" style=\"fill:none;\"/><line y2=\"0.777\" y1=\"0.777\" x2=\"28.047\" x1=\"-1.953\" style=\"fill:none;\"/><line y2=\"-25.206\" y1=\"-25.206\" x2=\"-136.953\" x1=\"-112.8905\" style=\"fill:none;\"/><line y2=\"0.777\" y1=\"-19.57\" x2=\"-91.953\" x1=\"-103.6994\" style=\"fill:none;\"/><line y2=\"-49.227\" y1=\"-65.346\" x2=\"136.953\" x1=\"111.651\" style=\"fill:none;\"/><line y2=\"-46.2751\" y1=\"-61.3084\" x2=\"135.0725\" x1=\"111.4747\" style=\"fill:none;\"/><path style=\"stroke:none;\" d=\"M85.2719 -51.0485 L84.8101 -51.9355 L108.9981 -67.6289 L114.8412 -63.9065 Z\"/><line y2=\"26.757\" y1=\"26.757\" x2=\"-16.953\" x1=\"-46.953\" style=\"fill:none;\"/><line y2=\"52.737\" y1=\"26.757\" x2=\"-61.953\" x1=\"-46.953\" style=\"fill:none;\"/><line y2=\"52.737\" y1=\"30.257\" x2=\"-57.9115\" x1=\"-44.9323\" style=\"fill:none;\"/><line y2=\"0.777\" y1=\"26.757\" x2=\"-61.953\" x1=\"-46.953\" style=\"fill:none;\"/><line y2=\"52.737\" y1=\"26.757\" x2=\"-1.953\" x1=\"-16.953\" style=\"fill:none;\"/><line y2=\"52.737\" y1=\"30.257\" x2=\"-5.9945\" x1=\"-18.9737\" style=\"fill:none;\"/><line y2=\"52.737\" y1=\"52.737\" x2=\"-91.953\" x1=\"-61.953\" style=\"fill:none;\"/><line y2=\"72.5787\" y1=\"52.737\" x2=\"-50.497\" x1=\"-61.953\" style=\"fill:none;\"/><line y2=\"0.777\" y1=\"0.777\" x2=\"-91.953\" x1=\"-61.953\" style=\"fill:none;\"/><line y2=\"4.277\" y1=\"4.277\" x2=\"-89.9323\" x1=\"-63.9737\" style=\"fill:none;\"/><line y2=\"78.717\" y1=\"52.737\" x2=\"-16.953\" x1=\"-1.953\" style=\"fill:none;\"/><line y2=\"26.757\" y1=\"52.737\" x2=\"-106.953\" x1=\"-91.953\" style=\"fill:none;\"/><line y2=\"26.7569\" y1=\"49.237\" x2=\"-102.9115\" x1=\"-89.9323\" style=\"fill:none;\"/><line y2=\"78.717\" y1=\"78.717\" x2=\"-16.953\" x1=\"-41.6014\" style=\"fill:none;\"/><line y2=\"75.217\" y1=\"75.217\" x2=\"-18.9737\" x1=\"-41.6014\" style=\"fill:none;\"/><line y2=\"26.757\" y1=\"0.777\" x2=\"-106.953\" x1=\"-91.953\" style=\"fill:none;\"/><line y2=\"-22.9227\" y1=\"0.777\" x2=\"37.5589\" x1=\"28.047\" style=\"fill:none;\"/><path style=\"stroke:none;\" d=\"M28.3927 1.1383 L27.7013 0.4157 L47.1148 -21.0165 L43.6455 -9.3935 Z\"/><path style=\"clip-path:url(#clipPath_73ce9e029de349d4acbc2c61f269f6f61); stroke:none;\" d=\"M45.323 -28.4294 L45.3241 -29.4294 L71.4315 -31.6118 L67.1417 -25.6163 Z\"/><line y2=\"-52.179\" y1=\"-34.1312\" x2=\"18.984\" x1=\"35.2801\" style=\"fill:none;\"/><line y2=\"-51.189\" y1=\"-15.348\" x2=\"55.599\" x1=\"44.901\" style=\"fill:none;\"/><line y2=\"-51.492\" y1=\"-28.905\" x2=\"85.041\" x1=\"68.88\" style=\"fill:none;\"/><line y2=\"-75.186\" y1=\"-52.179\" x2=\"33.555\" x1=\"18.984\" style=\"fill:none;\"/><line y2=\"-51.492\" y1=\"-51.189\" x2=\"85.041\" x1=\"55.599\" style=\"fill:none;\"/><line y2=\"-75.186\" y1=\"-51.189\" x2=\"33.555\" x1=\"55.599\" style=\"fill:none;\"/><path style=\"stroke:none;\" d=\"M28.8064 1.1461 L27.7536 1.5689 L28.0263 2.5369 L29.2786 2.0339 L28.8064 1.1461 ZM30.2231 3.8096 L28.5717 4.473 L28.5717 4.473 L28.8444 5.441 L28.8444 5.441 L30.6953 4.6975 L30.2231 3.8096 ZM31.6398 6.4732 L29.3899 7.377 L29.6626 8.345 L29.6626 8.345 L32.112 7.3611 L32.112 7.3611 L31.6398 6.4732 ZM33.0565 9.1368 L30.208 10.281 L30.208 10.281 L30.4807 11.249 L30.4807 11.249 L33.5287 10.0247 L33.0565 9.1368 ZM34.4732 11.8004 L31.0261 13.1851 L31.0261 13.1851 L31.2988 14.1531 L31.2988 14.1531 L34.9454 12.6883 L34.4732 11.8004 ZM35.8899 14.464 L31.8442 16.0891 L32.1169 17.0571 L32.1169 17.0571 L36.3621 15.3519 L35.8899 14.464 ZM37.3066 17.1276 L32.6624 18.9931 L32.9351 19.9611 L32.9351 19.9611 L37.7788 18.0154 L37.7788 18.0154 L37.3066 17.1276 ZM38.7233 19.7912 L33.4805 21.8971 L33.7532 22.8652 L39.1955 20.679 L39.1955 20.679 L38.7233 19.7912 Z\"/><path style=\"stroke:none;\" d=\"M56.0578 -50.9903 L55.1402 -51.3877 L62.1732 -73.9177 L67.6791 -71.5332 Z\"/></g><g transform=\"translate(140,86)\" style=\"font-size:8.4px; fill:gray; text-rendering:geometricPrecision; image-rendering:optimizeQuality; color-rendering:optimizeQuality; font-family:'Open Sans'; font-style:italic; stroke:gray; color-interpolation:linearRGB;\"><path style=\"stroke:none;\" d=\"M-1.3417 -6.7193 Q-1.3417 -8.0474 -0.873 -9.1724 Q-0.4042 -10.2974 0.627 -11.3755 L1.2364 -11.3755 Q0.2676 -10.313 -0.2167 -9.1411 Q-0.7011 -7.9693 -0.7011 -6.7349 Q-0.7011 -5.4068 -0.2636 -4.3911 L-0.7792 -4.3911 Q-1.3417 -5.4224 -1.3417 -6.7193 ZM2.2183 -8.0318 L1.7183 -5.6568 L1.0621 -5.6568 L2.2652 -11.3755 L3.5152 -11.3755 Q5.2496 -11.3755 5.2496 -9.938 Q5.2496 -8.5786 3.8121 -8.188 L4.7496 -5.6568 L4.0308 -5.6568 L3.2027 -8.0318 L2.2183 -8.0318 ZM2.7964 -10.7818 Q2.4058 -8.8599 2.3433 -8.6099 L2.9996 -8.6099 Q3.7496 -8.6099 4.1558 -8.938 Q4.5621 -9.2661 4.5621 -9.8911 Q4.5621 -10.3599 4.3042 -10.5708 Q4.0464 -10.7818 3.4527 -10.7818 L2.7964 -10.7818 ZM7.4355 -9.0318 Q7.4355 -7.7036 6.959 -6.5708 Q6.4824 -5.438 5.4668 -4.3911 L4.8574 -4.3911 Q6.7949 -6.5474 6.7949 -9.0318 Q6.7949 -10.3599 6.3574 -11.3755 L6.873 -11.3755 Q7.4355 -10.313 7.4355 -9.0318 Z\"/></g><g transform=\"translate(140,86)\" style=\"fill:rgb(230,0,0); text-rendering:geometricPrecision; color-rendering:optimizeQuality; image-rendering:optimizeQuality; font-family:'Open Sans'; stroke:rgb(230,0,0); color-interpolation:linearRGB;\"><path style=\"stroke:none;\" d=\"M-13.0155 -25.2763 Q-13.0155 -23.2138 -14.0546 -22.0341 Q-15.0936 -20.8544 -16.9374 -20.8544 Q-18.828 -20.8544 -19.8593 -22.0185 Q-20.8905 -23.1826 -20.8905 -25.2919 Q-20.8905 -27.3857 -19.8593 -28.5341 Q-18.828 -29.6826 -16.9374 -29.6826 Q-15.078 -29.6826 -14.0468 -28.5107 Q-13.0155 -27.3388 -13.0155 -25.2763 ZM-19.8436 -25.2763 Q-19.8436 -23.5419 -19.1014 -22.6357 Q-18.3593 -21.7294 -16.9374 -21.7294 Q-15.5155 -21.7294 -14.7889 -22.6279 Q-14.0624 -23.5263 -14.0624 -25.2763 Q-14.0624 -27.0107 -14.7889 -27.9013 Q-15.5155 -28.7919 -16.9374 -28.7919 Q-18.3593 -28.7919 -19.1014 -27.8935 Q-19.8436 -26.9951 -19.8436 -25.2763 Z\"/><path style=\"stroke:none;\" d=\"M-21.8905 -20.9794 L-22.8905 -20.9794 L-22.8905 -25.0107 L-27.4061 -25.0107 L-27.4061 -20.9794 L-28.4061 -20.9794 L-28.4061 -29.5419 L-27.4061 -29.5419 L-27.4061 -25.9013 L-22.8905 -25.9013 L-22.8905 -29.5419 L-21.8905 -29.5419 L-21.8905 -20.9794 Z\"/><path style=\"stroke:none;\" d=\"M-103.0155 -25.2763 Q-103.0155 -23.2138 -104.0546 -22.0341 Q-105.0936 -20.8544 -106.9374 -20.8544 Q-108.828 -20.8544 -109.8592 -22.0185 Q-110.8905 -23.1826 -110.8905 -25.2919 Q-110.8905 -27.3857 -109.8592 -28.5341 Q-108.828 -29.6826 -106.9374 -29.6826 Q-105.078 -29.6826 -104.0467 -28.5107 Q-103.0155 -27.3388 -103.0155 -25.2763 ZM-109.8436 -25.2763 Q-109.8436 -23.5419 -109.1014 -22.6357 Q-108.3592 -21.7294 -106.9374 -21.7294 Q-105.5155 -21.7294 -104.7889 -22.6279 Q-104.0624 -23.5263 -104.0624 -25.2763 Q-104.0624 -27.0107 -104.7889 -27.9013 Q-105.5155 -28.7919 -106.9374 -28.7919 Q-108.3592 -28.7919 -109.1014 -27.8935 Q-109.8436 -26.9951 -109.8436 -25.2763 Z\"/></g><g transform=\"translate(140,86)\" style=\"stroke-linecap:butt; text-rendering:geometricPrecision; color-rendering:optimizeQuality; image-rendering:optimizeQuality; font-family:'Open Sans'; color-interpolation:linearRGB; stroke-miterlimit:5;\"><path style=\"fill:none;\" d=\"M-47.203 27.19 L-46.953 26.757 L-46.453 26.757\"/><path style=\"fill:none;\" d=\"M-16.703 27.19 L-16.953 26.757 L-16.703 26.324\"/><path style=\"fill:none;\" d=\"M-61.703 52.304 L-61.953 52.737 L-62.453 52.737\"/><path style=\"fill:none;\" d=\"M-61.703 1.21 L-61.953 0.777 L-62.453 0.777\"/><path style=\"fill:none;\" d=\"M-2.203 52.304 L-1.953 52.737 L-2.203 53.17\"/><path style=\"fill:none;\" d=\"M-91.453 52.737 L-91.953 52.737 L-92.203 52.304\"/><path style=\"fill:rgb(0,5,255); stroke:none;\" d=\"M-43.6014 82.8732 L-44.7421 82.8732 L-49.4296 75.6857 L-49.4764 75.6857 Q-49.3827 76.9514 -49.3827 77.9982 L-49.3827 82.8732 L-50.3046 82.8732 L-50.3046 74.3107 L-49.1796 74.3107 L-44.5077 81.467 L-44.4608 81.467 Q-44.4608 81.3107 -44.5077 80.4514 Q-44.5546 79.592 -44.5389 79.217 L-44.5389 74.3107 L-43.6014 74.3107 L-43.6014 82.8732 Z\"/><path style=\"fill:none;\" d=\"M-91.453 0.777 L-91.953 0.777 L-92.203 0.344\"/><path style=\"fill:none;\" d=\"M-16.703 78.284 L-16.953 78.717 L-17.453 78.717\"/><path style=\"fill:none;\" d=\"M-106.703 27.19 L-106.953 26.757 L-106.703 26.324\"/><path style=\"fill:none;\" d=\"M28.2333 1.241 L28.047 0.777 L27.547 0.777\"/></g><g transform=\"translate(140,86)\" style=\"stroke-linecap:butt; font-size:8.4px; fill:gray; text-rendering:geometricPrecision; image-rendering:optimizeQuality; color-rendering:optimizeQuality; font-family:'Open Sans'; font-style:italic; stroke:gray; color-interpolation:linearRGB; stroke-miterlimit:5;\"><path style=\"stroke:none;\" d=\"M18.3372 10.2642 Q18.3372 8.9361 18.8059 7.8111 Q19.2747 6.6861 20.3059 5.6079 L20.9153 5.6079 Q19.9466 6.6704 19.4622 7.8423 Q18.9778 9.0142 18.9778 10.2486 Q18.9778 11.5767 19.4153 12.5923 L18.8997 12.5923 Q18.3372 11.5611 18.3372 10.2642 ZM23.9597 9.6704 Q23.9597 10.4986 23.4129 10.9517 Q22.866 11.4048 21.866 11.4048 Q21.4597 11.4048 21.1472 11.3501 Q20.8347 11.2954 20.5535 11.1548 L20.5535 10.4986 Q21.1785 10.8267 21.8816 10.8267 Q22.5066 10.8267 22.8816 10.5298 Q23.2566 10.2329 23.2566 9.7173 Q23.2566 9.4048 23.0535 9.1782 Q22.8504 8.9517 22.2879 8.6236 Q21.6941 8.2954 21.4676 7.9673 Q21.241 7.6392 21.241 7.1861 Q21.241 6.4517 21.7566 5.9907 Q22.2722 5.5298 23.116 5.5298 Q23.491 5.5298 23.8269 5.6079 Q24.1629 5.6861 24.5379 5.8579 L24.2722 6.4517 Q24.0222 6.2954 23.7019 6.2095 Q23.3816 6.1236 23.116 6.1236 Q22.5847 6.1236 22.2644 6.397 Q21.9441 6.6704 21.9441 7.1392 Q21.9441 7.3423 22.0144 7.4907 Q22.0847 7.6392 22.2254 7.772 Q22.366 7.9048 22.7879 8.1548 Q23.3504 8.4986 23.5535 8.6939 Q23.7566 8.8892 23.8582 9.1236 Q23.9597 9.3579 23.9597 9.6704 ZM26.5542 7.9517 Q26.5542 9.2798 26.0777 10.4126 Q25.6011 11.5454 24.5855 12.5923 L23.9761 12.5923 Q25.9136 10.4361 25.9136 7.9517 Q25.9136 6.6236 25.4761 5.6079 L25.9917 5.6079 Q26.5542 6.6704 26.5542 7.9517 Z\"/></g><g transform=\"translate(140,86)\" style=\"stroke-linecap:butt; fill:rgb(0,5,255); text-rendering:geometricPrecision; color-rendering:optimizeQuality; image-rendering:optimizeQuality; font-family:'Open Sans'; stroke:rgb(0,5,255); color-interpolation:linearRGB; stroke-miterlimit:5;\"><path style=\"stroke:none;\" d=\"M43.3236 -24.7787 L42.1829 -24.7787 L37.4954 -31.9662 L37.4486 -31.9662 Q37.5423 -30.7006 37.5423 -29.6537 L37.5423 -24.7787 L36.6204 -24.7787 L36.6204 -33.3412 L37.7454 -33.3412 L42.4173 -26.185 L42.4642 -26.185 Q42.4642 -26.3412 42.4173 -27.2006 Q42.3704 -28.06 42.3861 -28.435 L42.3861 -33.3412 L43.3236 -33.3412 L43.3236 -24.7787 Z\"/></g><g transform=\"translate(140,86)\" style=\"stroke-linecap:butt; font-size:8.4px; fill:gray; text-rendering:geometricPrecision; image-rendering:optimizeQuality; color-rendering:optimizeQuality; font-family:'Open Sans'; font-style:italic; stroke:gray; color-interpolation:linearRGB; stroke-miterlimit:5;\"><path style=\"stroke:none;\" d=\"M25.6349 -25.9088 Q25.6349 -27.2369 26.1037 -28.3619 Q26.5724 -29.4869 27.6037 -30.565 L28.213 -30.565 Q27.2443 -29.5025 26.7599 -28.3307 Q26.2755 -27.1588 26.2755 -25.9244 Q26.2755 -24.5963 26.713 -23.5807 L26.1974 -23.5807 Q25.6349 -24.6119 25.6349 -25.9088 ZM31.2575 -26.5025 Q31.2575 -25.6744 30.7106 -25.2213 Q30.1637 -24.7682 29.1637 -24.7682 Q28.7575 -24.7682 28.445 -24.8228 Q28.1325 -24.8775 27.8512 -25.0182 L27.8512 -25.6744 Q28.4762 -25.3463 29.1793 -25.3463 Q29.8043 -25.3463 30.1793 -25.6432 Q30.5543 -25.94 30.5543 -26.4557 Q30.5543 -26.7682 30.3512 -26.9947 Q30.1481 -27.2213 29.5856 -27.5494 Q28.9918 -27.8775 28.7653 -28.2057 Q28.5387 -28.5338 28.5387 -28.9869 Q28.5387 -29.7213 29.0543 -30.1822 Q29.57 -30.6432 30.4137 -30.6432 Q30.7887 -30.6432 31.1247 -30.565 Q31.4606 -30.4869 31.8356 -30.315 L31.57 -29.7213 Q31.32 -29.8775 30.9997 -29.9635 Q30.6793 -30.0494 30.4137 -30.0494 Q29.8825 -30.0494 29.5622 -29.776 Q29.2418 -29.5025 29.2418 -29.0338 Q29.2418 -28.8307 29.3122 -28.6822 Q29.3825 -28.5338 29.5231 -28.401 Q29.6637 -28.2682 30.0856 -28.0182 Q30.6481 -27.6744 30.8512 -27.4791 Q31.0543 -27.2838 31.1559 -27.0494 Q31.2575 -26.815 31.2575 -26.5025 ZM33.852 -28.2213 Q33.852 -26.8932 33.3754 -25.7603 Q32.8988 -24.6275 31.8832 -23.5807 L31.2738 -23.5807 Q33.2113 -25.7369 33.2113 -28.2213 Q33.2113 -29.5494 32.7738 -30.565 L33.2895 -30.565 Q33.852 -29.5025 33.852 -28.2213 Z\"/><path style=\"fill:none; stroke:black;\" d=\"M19.3191 -51.8079 L18.984 -52.179 L19.2515 -52.6014\"/><path style=\"stroke:none;\" d=\"M41.7458 -47.7405 Q41.7458 -49.0686 42.2146 -50.1936 Q42.6833 -51.3186 43.7146 -52.3967 L44.324 -52.3967 Q43.3552 -51.3342 42.8708 -50.1624 Q42.3865 -48.9905 42.3865 -47.7561 Q42.3865 -46.428 42.824 -45.4124 L42.3083 -45.4124 Q41.7458 -46.4436 41.7458 -47.7405 ZM47.3684 -48.3342 Q47.3684 -47.5061 46.8215 -47.053 Q46.2746 -46.5999 45.2746 -46.5999 Q44.8684 -46.5999 44.5559 -46.6546 Q44.2434 -46.7092 43.9621 -46.8499 L43.9621 -47.5061 Q44.5871 -47.178 45.2903 -47.178 Q45.9153 -47.178 46.2903 -47.4749 Q46.6653 -47.7717 46.6653 -48.2874 Q46.6653 -48.5999 46.4621 -48.8264 Q46.259 -49.053 45.6965 -49.3811 Q45.1028 -49.7092 44.8762 -50.0374 Q44.6496 -50.3655 44.6496 -50.8186 Q44.6496 -51.553 45.1653 -52.0139 Q45.6809 -52.4749 46.5246 -52.4749 Q46.8996 -52.4749 47.2356 -52.3967 Q47.5715 -52.3186 47.9465 -52.1467 L47.6809 -51.553 Q47.4309 -51.7092 47.1106 -51.7952 Q46.7903 -51.8811 46.5246 -51.8811 Q45.9934 -51.8811 45.6731 -51.6077 Q45.3528 -51.3342 45.3528 -50.8655 Q45.3528 -50.6624 45.4231 -50.5139 Q45.4934 -50.3655 45.634 -50.2327 Q45.7746 -50.0999 46.1965 -49.8499 Q46.759 -49.5061 46.9621 -49.3108 Q47.1653 -49.1155 47.2668 -48.8811 Q47.3684 -48.6467 47.3684 -48.3342 ZM49.9629 -50.053 Q49.9629 -48.7249 49.4863 -47.5921 Q49.0097 -46.4592 47.9941 -45.4124 L47.3847 -45.4124 Q49.3222 -47.5686 49.3222 -50.053 Q49.3222 -51.3811 48.8847 -52.3967 L49.4004 -52.3967 Q49.9629 -51.3342 49.9629 -50.053 Z\"/><path style=\"stroke:none;\" d=\"M87.2076 -42.7762 Q87.2076 -44.1043 87.6764 -45.2293 Q88.1451 -46.3543 89.1764 -47.4325 L89.7858 -47.4325 Q88.817 -46.37 88.3326 -45.1981 Q87.8483 -44.0262 87.8483 -42.7918 Q87.8483 -41.4637 88.2858 -40.4481 L87.7701 -40.4481 Q87.2076 -41.4793 87.2076 -42.7762 ZM90.7677 -44.0887 L90.2677 -41.7137 L89.6114 -41.7137 L90.8146 -47.4325 L92.0646 -47.4325 Q93.7989 -47.4325 93.7989 -45.995 Q93.7989 -44.6356 92.3614 -44.245 L93.2989 -41.7137 L92.5802 -41.7137 L91.7521 -44.0887 L90.7677 -44.0887 ZM91.3458 -46.8387 Q90.9552 -44.9168 90.8927 -44.6668 L91.5489 -44.6668 Q92.2989 -44.6668 92.7052 -44.995 Q93.1114 -45.3231 93.1114 -45.9481 Q93.1114 -46.4168 92.8536 -46.6278 Q92.5958 -46.8387 92.0021 -46.8387 L91.3458 -46.8387 ZM95.9849 -45.0887 Q95.9849 -43.7606 95.5083 -42.6278 Q95.0318 -41.495 94.0162 -40.4481 L93.4068 -40.4481 Q95.3443 -42.6043 95.3443 -45.0887 Q95.3443 -46.4168 94.9068 -47.4325 L95.4224 -47.4325 Q95.9849 -46.37 95.9849 -45.0887 Z\"/><path style=\"fill:none; stroke:black;\" d=\"M33.2875 -74.7636 L33.555 -75.186 L33.8933 -74.8178\"/></g><g transform=\"translate(140,86)\" style=\"stroke-linecap:butt; text-rendering:geometricPrecision; color-rendering:optimizeQuality; image-rendering:optimizeQuality; font-family:'Open Sans'; color-interpolation:linearRGB; stroke-miterlimit:5;\"><path style=\"stroke:none;\" d=\"M42.4798 32.7732 L41.4798 32.7732 L41.4798 28.742 L36.9642 28.742 L36.9642 32.7732 L35.9642 32.7732 L35.9642 24.2107 L36.9642 24.2107 L36.9642 27.8514 L41.4798 27.8514 L41.4798 24.2107 L42.4798 24.2107 L42.4798 32.7732 Z\"/><path style=\"stroke:none;\" d=\"M70.7788 -74.5607 L69.7788 -74.5607 L69.7788 -78.592 L65.2632 -78.592 L65.2632 -74.5607 L64.2632 -74.5607 L64.2632 -83.1232 L65.2632 -83.1232 L65.2632 -79.4826 L69.7788 -79.4826 L69.7788 -83.1232 L70.7788 -83.1232 L70.7788 -74.5607 Z\"/></g></g></svg></svg></svg></svg>"
##
## $inchi
## [1] "InChI=1S/C20H24N2O2/c1-3-13-12-22-9-7-14(13)10-19(22)20(23)16-6-8-21-18-5-4-15(24-2)11-17(16)18/h3-6,8,11,13-14,19-20,23H,1,7,9-10,12H2,2H3/t13-,14-,19-,20+/m0/s1"
##
## $inchiKey
## [1] "InChIKey=LOUPRKONTZGTKE-WZBLMQSHSA-N"
##
## $smile
## [1] "[C@@H](O)(C=1C2=C(C=CC(OC)=C2)N=CC1)[C@]3([N@@]4C[C@H](C=C)[C@](C3)(CC4)[H])[H]"
##
## $canonicalSmile
## [1] "OC(C=1C=CN=C2C=CC(OC)=CC21)C3N4CCC(C3)C(C=C)C4"
##
## $molecularFormula
## [1] "C<sub>20</sub>H<sub>24</sub>N<sub>2</sub>O<sub>2</sub>"
##
## $molecularMass
## [1] "324.42"
##
## $experimentalProperties
## name property sourceNumber
## 1 Melting Point 177 °C (decomp) 0
##
## $propertyCitations
## list()
##
## $synonyms
## [1] "Cinchonan-9-ol, 6′-methoxy-, (8α,9<em>R</em>)-"
## [2] "Quinine"
## [3] "(8α,9<em>R</em>)-6′-Methoxycinchonan-9-ol"
## [4] "6′-Methoxycinchonidine"
## [5] "(-)-Quinine"
## [6] "(8<em>S</em>,9<em>R</em>)-Quinine"
## [7] "(<em>R</em>)-(-)-Quinine"
## [8] "NSC 192949"
## [9] "WR297608"
## [10] "Qualaquin"
## [11] "Mosgard"
## [12] "Quinlup"
## [13] "Quine 9"
## [14] "Cinkona"
## [15] "Quinex"
## [16] "Quinlex"
## [17] "Rezquin"
## [18] "QSM"
## [19] "SW 85833"
## [20] "(<em>R</em>)-(6-Methoxy-4-quinolyl)[(2<em>S</em>)-5-vinylquinuclidin-2-yl]methanol"
## [21] "MeSH ID: D011803"
##
## $replacedRns
## [1] "6912-57-8" "12239-42-8" "21480-31-9" "55980-20-6" "72646-90-3"
## [6] "95650-40-1" "128544-03-6" "767303-40-2" "840482-04-4" "857212-53-4"
## [11] "864908-93-0" "875538-34-4" "888714-03-2" "890027-24-4" "894767-09-0"
## [16] "898813-59-7" "898814-28-3" "899813-83-3" "900786-66-5" "900789-95-9"
## [21] "906550-97-8" "909263-47-4" "909767-48-2" "909882-78-6" "910878-25-0"
## [26] "910880-97-6" "911445-75-5" "918778-04-8" "1071756-51-8" "1267651-57-9"
## [31] "1628705-47-4" "2244812-93-7" "2244812-97-1" "2409557-51-1" "2566761-34-8"
## [36] "2929261-86-7" "3032276-91-5" "3041057-60-4" "3054777-52-2"
##
## $hasMolfile
## [1] TRUE
Handle Multiple Results#
# SMILES for butadiene
smi_bd <- "C=CC=C"
# Request data from CAS Common Chemistry Search API
url <- paste0(SEARCH_BASE_URL, smi_bd)
search_response <- GET(url, add_headers("X-API-KEY" = Sys.getenv("CAS_API_KEY")))
smi_search_data <- fromJSON(rawToChar(search_response$content))
# Get results count
smi_search_data$count
## [1] 7
# Display CAS RNs
smi_search_data$results$rn
## [1] "106-99-0" "16422-75-6" "26952-74-9" "29406-96-0" "29989-19-3"
## [6] "31567-90-5" "9003-17-2"
names <- lapply(smi_search_data$results$rn, function(casrn) {
smi_url <- paste0(DETAIL_BASE_URL, "cas_rn=", casrn)
smi_data <- GET(smi_url, add_headers("X-API-KEY" = Sys.getenv("CAS_API_KEY")))
smi_data <- fromJSON(rawToChar(smi_data$content))
Sys.sleep(1)
return(smi_data$name)
})
unlist(names) # Display names
## [1] "1,3-Butadiene"
## [2] "Butadiene trimer"
## [3] "Butadiene dimer"
## [4] "1,3-Butadiene, homopolymer, isotactic"
## [5] "1,3-Butadiene-<em>1</em>,<em>1</em>,<em>2</em>,<em>3</em>,<em>4</em>,<em>4</em>-<em>d</em><sub>6</sub>, homopolymer"
## [6] "Syndiotactic polybutadiene"
## [7] "Polybutadiene"
Handle Multiple Page Results#
The CAS Common Chemistry API returns 50 results per page, and only the first page is returned by default. If the search returns more than 50 results, the offset option can be added to page through and obtain all results:
# Set up search query parameters
n <- "selen*"
# Calculate number of pages needed
num_results <- 200 # Total number of results to retrieve
page_size <- 50 # Number of results to retrieve per page
num_pages <- ceiling(num_results / page_size)
# Create empty list for results
n_search_data <- list()
# Loop through the pages of data
for (page_idx in seq_len(num_pages)) {
# Calculate the starting offset for the current page
offset <- (page_idx - 1) * page_size
# Construct the search URL for the current page
search_url <- paste0(SEARCH_BASE_URL, n, "&offset=", offset)
# Make the API request and append the response to the list of results
response <- GET(search_url, add_headers("X-API-KEY" = Sys.getenv("CAS_API_KEY")))
n_search_data[[page_idx]] <- fromJSON(rawToChar(response$content))
# Pause for 1 second
Sys.sleep(1)
}
# Length of search data includes a top level list for each query
length(n_search_data)
## [1] 4
# List within lists contain the results
length(n_search_data[[1]]$results)
## [1] 3
length(n_search_data[[2]]$results)
## [1] 3
length(n_search_data[[3]]$results)
## [1] 3
length(n_search_data[[4]]$results)
## [1] 3
# We can index and extract out the first CAS RN as follows
n_search_data[[1]]$results[[1]][[1]]
## [1] "10025-68-0"
n_casrn_list <- character()
for (n_idx in seq_along(n_search_data)) {
n_casrn_list <- c(n_casrn_list, n_search_data[[n_idx]]$results$rn)
}
length(n_casrn_list)
## [1] 195
n_casrn_list[1:10]
## [1] "10025-68-0" "10026-03-6" "10026-23-0" "10101-96-9" "10102-18-8"
## [6] "10102-23-5" "10112-94-4" "10161-84-9" "10214-40-1" "10236-58-5"
We can now iterate through the list of CAS RNs to store data about the chemicals. In this example we extract a list of molecularMass values and visualize them.
# Now we can loop through each CAS RN and use the detail API to obtain the entire record
# This will query CAS Common Chem 191 times and take ~ 5 min.
DETAIL_BASE_URL <- "https://commonchemistry.cas.org/api/detail?"
n_detail_data <- list()
for (casrn in n_casrn_list) {
casrn_url <- paste0(DETAIL_BASE_URL, "cas_rn=", casrn)
response <- GET(casrn_url, add_headers("X-API-KEY" = Sys.getenv("CAS_API_KEY")))
n_detail_data[[casrn]] <- content(response)
Sys.sleep(1) # Add a 1 second delay between API calls
}
mms <- list()
for (mm_idx in seq_along(n_detail_data)) {
mms <- c(mms, n_detail_data[[mm_idx]]$molecularMass)
}
head(mms, n = 10)
## [[1]]
## [1] "228.82"
##
## [[2]]
## [1] "220.77"
##
## [[3]]
## [1] "187.91"
##
## [[4]]
## [1] "187.67"
##
## [[5]]
## [1] "174.95"
##
## [[6]]
## [1] "371.11"
##
## [[7]]
## [1] "167.96"
##
## [[8]]
## [1] "300.24"
##
## [[9]]
## [1] "192.52"
##
## [[10]]
## [1] "168.05"
Visualization#

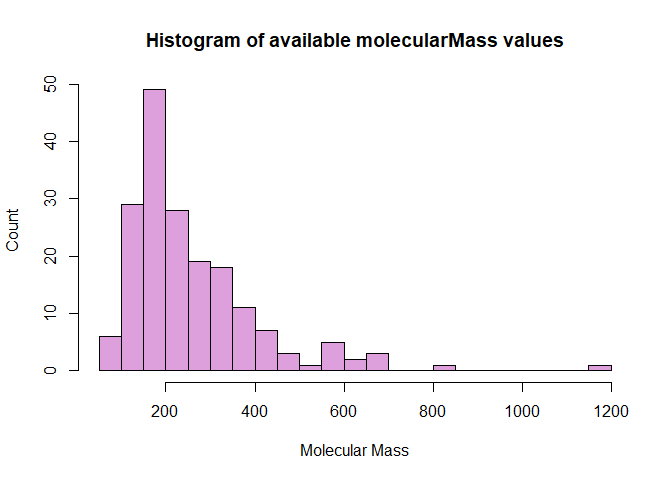

Using the list of molecular mass values we collected, we can create visualizations in R using the hist() and density() functions.
# Histogram
hist(as.numeric(mms), # Reformat mms type to numeric and call as x variable
breaks = 20,
main = "Histogram of available molecularMass values", # Set title
xlab = "Molecular Mass", # X Label
ylab = "Count", # Y Label
col = "plum", ) # Color

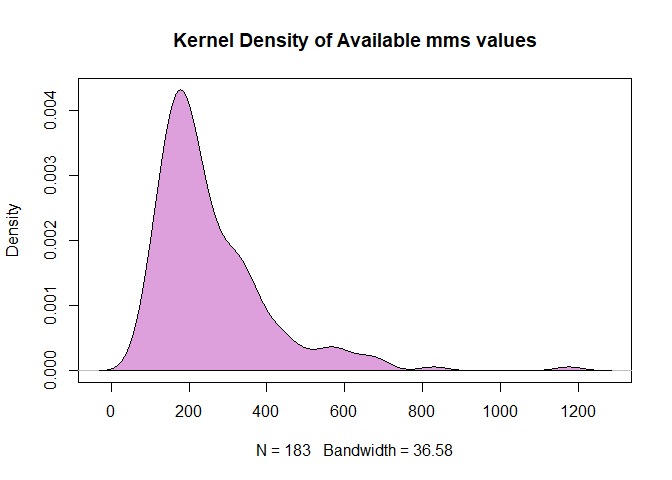

We can also make a kernel density plot, a graph that uses a continuous curve to depict the distribution of the data with respect to the molecular mass values. This will give some more fidelity as opposed to the histogram.
d <- density(na.omit(as.numeric(mms)))
plot(d, main = "Kernel Density of Available mms values")
polygon(d, col = "plum", border = "black")
